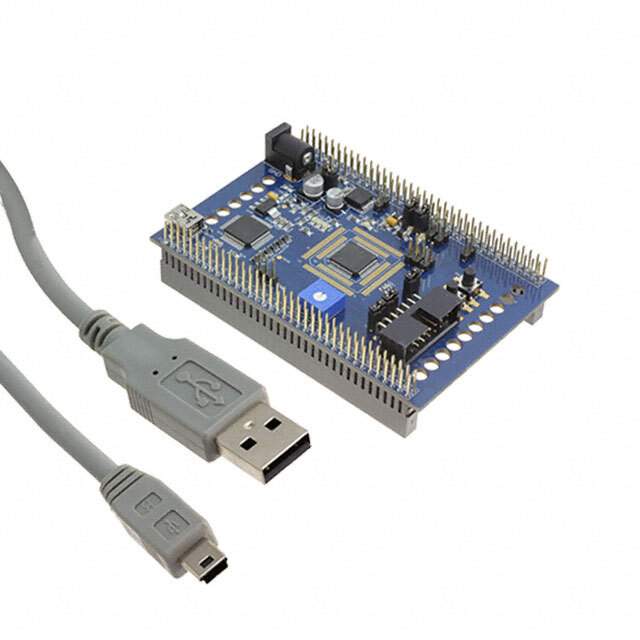

The SPC560D-DIS Discovery Kit from STMicroelectronics is an innovative development platform designed for automotive and high-performance embedded applications. It is centered around the SPC560D microcontroller, which is part of the SPC560Dxx family of 32-bit Power Architecture® microcontrollers that are specifically tailored for automotive body electronics and security applications.

Key Features

• Powerful Core: The heart of the Discovery Kit is the SPC560D microcontroller, featuring a 32-bit PowerPC core that runs at up to 64 MHz, offering robust performance for demanding applications.
• Memory Capacity: Equipped with substantial memory resources, the kit includes up to 512 KB of flash memory and 64 KB of RAM, providing ample space for complex software and data storage.
• Advanced Peripherals: A wide range of on-chip peripherals such as multiple timers, watchdog, ADC, and enhanced modular I/O system are available to support diverse automotive applications.
• Connectivity: The Discovery Kit supports CAN and LIN communication interfaces, which are essential for automotive network communications, ensuring interoperability with other components in a vehicle’s electronic system.
• Debugging and Programming: On-board JTAG interface allows for straightforward programming and debugging, facilitating development and testing processes.
• Expansion Capabilities: The kit includes extension headers that make it easy to connect to additional boards or hardware, providing flexibility for future expansions and customizations.

Development Support

STMicroelectronics provides comprehensive development support for the SPC560D-DIS Discovery Kit with a suite of software tools, including an integrated development environment (IDE), software libraries, and drivers. Developers can also take advantage of the extensive documentation, application notes, and online resources to accelerate the development process.

Applications

The SPC560D-DIS Discovery Kit is ideal for developing advanced automotive applications such as body control modules, security systems, and small engine control units. Its high level of integration, performance, and scalability also make it suitable for industrial and control systems that require reliable and secure operation.
