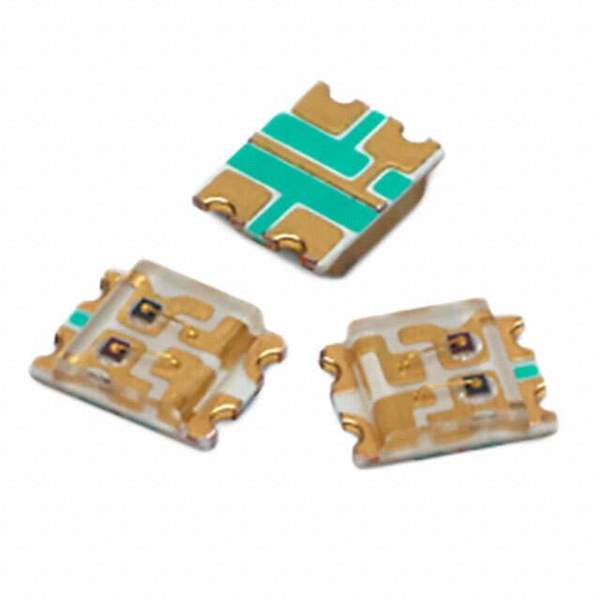

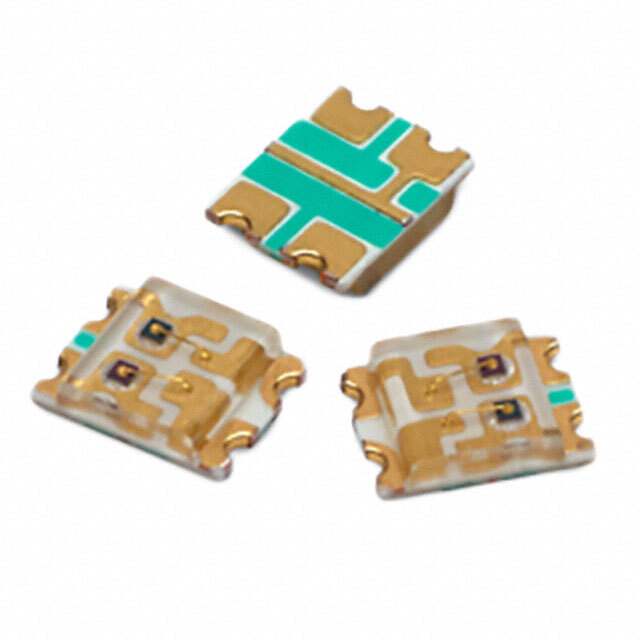

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Orange
Lens Color White
Lens Transparency Diffused
Millicandela Rating 90mcd
Lens Style/Size Rectangle with Flat Top, 1.40mm x 1.25mm
Forward Voltage 1.9V
Current - Test 20mA
Viewing Angle 170°
Mounting SMD (SMT)
Wavelength - Dominant 605nm
Wavelength - Peak 609nm
Case / Package Chip LED
Height (Max) 0.80mm
Win Source Part Number 017027-HSML-C170
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian HSML-C170 CAD Model

Description

The Broadcom Limited 017027-HSML-C170 is a high-quality chip LED that comes in an orange reel packaging.

  • Lens Transparency: Diffused white
  • Shape: Rectangle with a flat top, measuring 1.40mm x 1.25mm
  • Viewing Angle: 170 degrees
  • Millicandela Rating: 90mcd
  • Forward Voltage: 1.9V
  • Wavelength Dominant: 605nm
  • Peak Wavelength: 609nm
  • Mounting: SMD (SMT)
  • Height: 0.80mm
  • Supply and Demand: Balanced
  • Package: 4k pcs
