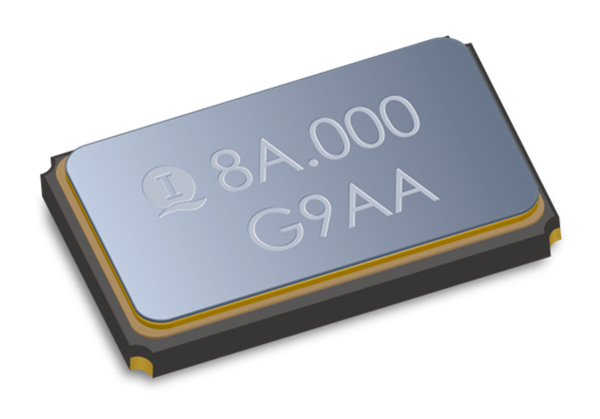

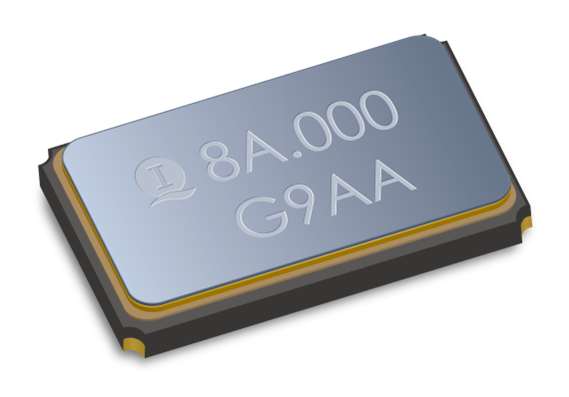

5XAA08000123SFA0Q3 Interquip Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5XAA08000123SFA0Q3

Part No 5XAA08000123SFA0Q3
Manufacturer Interquip Electronics
Catalog Crystals
Description Crystal 8.000MHz 12PF SMCE-5032 Series
Datasheet
5XAA08000123SFA0Q3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Size 5.0x3.2mm
Nominal Frequency Range 8MHz ~ 156.25MHz
Frequency Tolerance, Ta=25℃± 3℃ ±10ppm, ±20ppm
Load Capacitance 18pF or specify
Frequency Tolerance over Operating Temperature Range ±10ppm, ±20ppm or specify
Operating Temperature Range -20°C ~ +70°C, -40°C ~ +85°C,-40°C ~ +125°C or specify
Storage Temperature Range -55°C ~ +125°C
Drive Level 100µW Typ.
DriShunt Capacitance 7pF Max.
Insulation Resistance 500MΩ Min.
Aging ±3ppm/Year Max.
Ultra Librarian 3D Model Ultra Librarian 5XAA08000123SFA0Q3 CAD Model

Description

Surface mount ceramic enclosures|High reliability seam welded package|Conforms to AEC-Q200 (Optional)|Wide frequency range|RoHS Compliant and Pb Free
