STMicroelectronics M24C04-DRMF3TG/K EEPROM

The M24C04-DRMF3TG/K is a 4-Kbit serial EEPROM from the renowned manufacturer STMicroelectronics, designed for optimal data storage efficiency and performance. This device operates with a supply voltage range from 2.5V to 5.5V, making it versatile for various applications. It is part of the M24C series, which is known for its robustness and reliability in data retention and endurance.

Key Features

• Memory Size: 4 Kbits of EEPROM, which is divided into 512 x 8-bit organization, allowing for efficient storage of configuration data, calibration constants, and various application parameters.
• Interface: I²C compatible 2-wire serial interface, supporting 400 kHz protocol for rapid data transfer, making it suitable for applications that require fast access to non-volatile memory.
• Write Cycle Time: Fast write cycle times of 5 ms typical, enabling quick updates to stored data without significant processing delays.
• Endurance: High reliability with 1 million write cycles and a data retention of 40 years, ensuring the longevity and durability of the stored information.
• Temperature Range: Industrial temperature range from -40°C to +85°C, allowing the device to operate reliably in a wide range of environmental conditions.

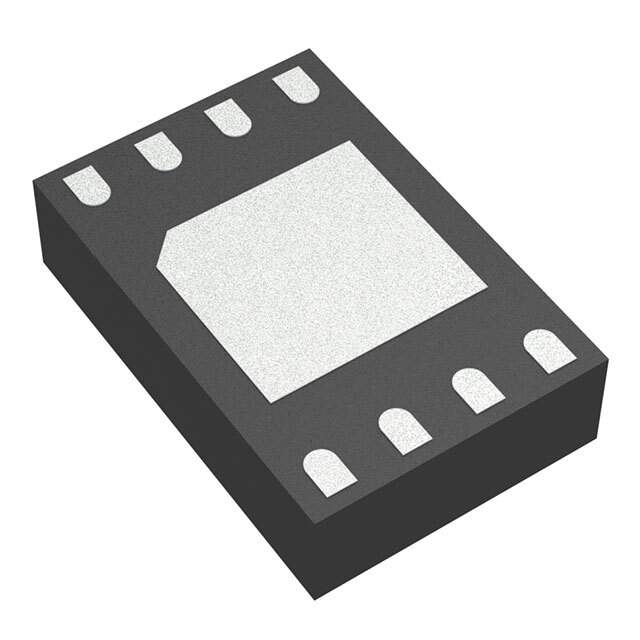

• Package: The device is available in an 8-pin UFDFPN package, which is known for its compact footprint and suitability for space-constrained applications.

Applications

The M24C04-DRMF3TG/K EEPROM is ideal for use in a variety of applications, including:

• Industrial and consumer electronics
• Automotive systems
• Medical devices
• Smart cards
• Portable devices

Conclusion

With its combination of a small form factor, high data reliability, and compatibility with the I²C bus, the M24C04-DRMF3TG/K from STMicroelectronics is a top choice for designers and engineers looking for a dependable non-volatile memory solution. Whether you're working on a complex automotive system or a simple consumer electronic device, this EEPROM can meet your data storage needs with ease and precision.
