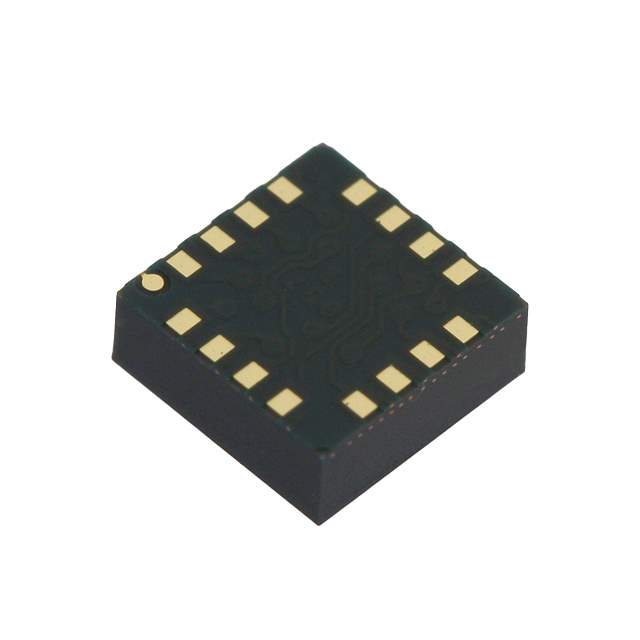

LPR503ALTR

Part No LPR503ALTR
Manufacturer STMicroelectronics
Catalog Motion Sensors - Gyroscopes
Description MEMS motion sensor: dual axis pitch and roll ±30°/s analog gyroscope | GYROSCOPE MEMS DUAL AXIS 16-LGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer STMicroelectronics
Packaging Reel
Status Obsolete
Type Analog
Axis X (Pitch), Y (Roll)
Range °/s ±30
Sensitivity (mV/°/s) 33.3
Bandwidth 140Hz
Output Type Analog Voltage
Supply Voltage (V) 2.7V ~ 3.6V
Supply Current 6.8mA
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 16-LFLGA
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1204238-LPR503ALTR
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LPR503ALTR CAD Model

Description

STMicroelectronics LPR503ALTR Dual-Axis Gyroscope

The LPR503ALTR is a cutting-edge MEMS motion sensor from STMicroelectronics, designed to deliver high-precision angular rate measurement across two axes. It is part of ST's extensive portfolio of gyroscopes engineered to provide solutions for advanced motion sensing requirements. This particular model is widely used in various applications, such as gaming and virtual reality devices, GPS navigation systems, and industrial control systems.

The LPR503ALTR features a dual-axis pitch and roll sensing capability, with an output that measures the rate of rotation around the sensor's orthogonal axes. This sensor is capable of detecting rates with a full-scale range of ±30 degrees per second (dps), providing the sensitivity needed for fine motion detection and control. The high-resolution output, combined with a low level of noise, makes it an ideal choice for applications requiring precise motion analysis and feedback.

One of the key benefits of the LPR503ALTR is its robust design. It is built to withstand significant levels of shock and vibration, ensuring reliable performance even in the most demanding of environments. This durability, combined with the sensor's compact footprint, makes it suitable for integration into space-constrained designs without compromising on performance.

STMicroelectronics has equipped the LPR503ALTR with smart power management features. It operates over a wide supply voltage range, from 2.7V to 3.6V, which allows for flexible integration into various system architectures. Additionally, its low power consumption makes it an excellent choice for battery-powered or energy-sensitive applications.

Interfacing with the LPR503ALTR is made straightforward through its I2C digital interface, which facilitates easy communication with microcontrollers and other digital systems. The sensor also includes a temperature sensor for improved accuracy and built-in self-test capability that allows users to verify the functioning of the sensor at any time, enhancing system reliability.

Overall, the LPR503ALTR from STMicroelectronics represents a blend of performance, durability, and ease of use, making it a top choice for designers looking to incorporate reliable motion sensing into their projects.
