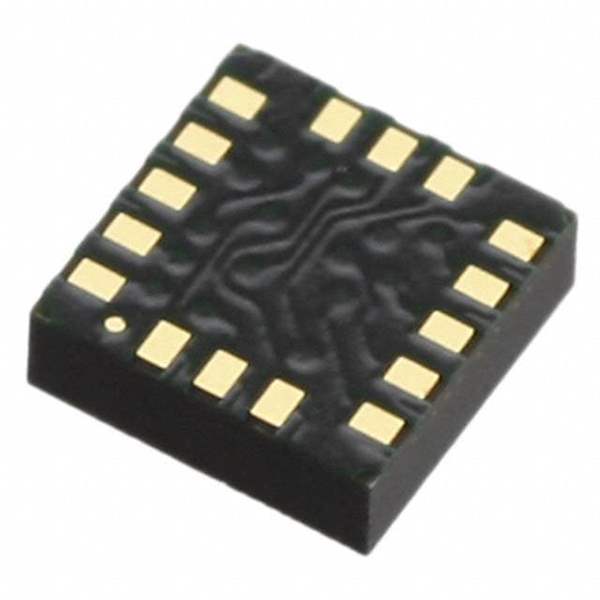

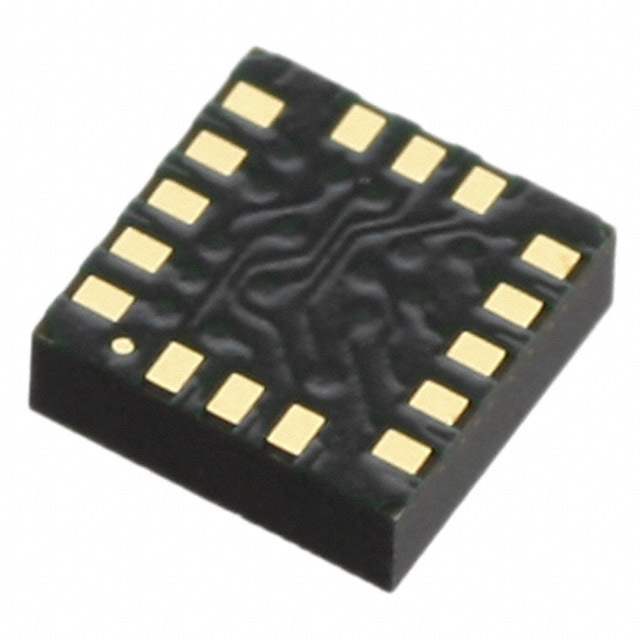

LIS3DSH

Part No LIS3DSH
Manufacturer STMicroelectronics
Catalog Motion Sensors - Accelerometers
Description ACCEL 2-16G I2C/SPI 16LGA
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - Accelerometers
Mfr STMicroelectronics
Package Tray
Product Status Obsolete
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 6g, 8g, 16g
Sensitivity (LSB/g) 16666 (±2g) ~ 1369 (±16g)
Bandwidth 1.56Hz ~ 800Hz
Output Type I2C, SPI
Voltage - Supply 1.71V ~ 3.6V
Features Adjustable Bandwidth, Selectable Scale, Temperature Sensor
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-VFLGA
Supplier Device Package 16-LGA (3x3)
Base Product Number LIS3
Standard Package 490 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 613800-LIS3DSH
Ultra Librarian 3D Model Ultra Librarian LIS3DSH CAD Model

Description

LIS3DSH from STMicroelectronics is a motion sensor accelerometer used in embedded systems that need reliable movement, tilt, orientation, shock, or vibration detection. Engineers commonly consider this type of component for consumer electronics, industrial controls, asset tracking devices, wearable products, and smart IoT equipment where motion awareness supports power management, user interaction, or event logging. As an STMicroelectronics device in the accelerometer category, LIS3DSH is typically positioned for compact designs that need a proven supplier and broad ecosystem familiarity. For new designs, buyers should review current documentation, package options, and software support before committing to volume production. The lifecycle status for LIS3DSH is currently listed as information not available, so design teams should confirm active production directly with STMicroelectronics or authorized channels before qualification. RoHS compliance information is also not available in the provided data and should be verified using the latest manufacturer datasheet, declaration, or distributor compliance records.
