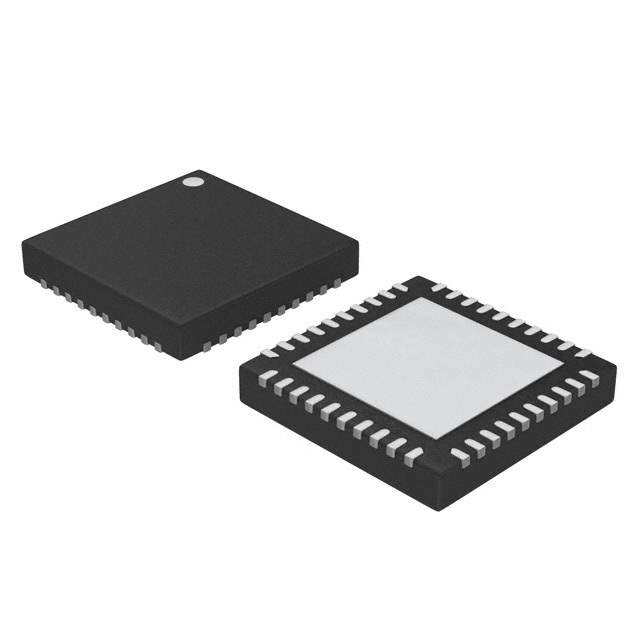

The L99LD20Q6TR from STMicroelectronics is a sophisticated automotive LED driver designed to cater to the increasing demands of modern automotive lighting systems. This high-performance driver is tailored to manage exterior lighting applications, such as rear lamps, turn indicators, and daytime running lights, with exceptional precision and efficiency.

Key Features

• Multiple Output Channels: The L99LD20Q6TR features six output channels that can be configured for various LED configurations, offering design flexibility for different lighting needs.
• Integrated Diagnostics: Advanced diagnostic functions are built into the device to ensure safe and reliable operation. These include open-load detection, LED short-circuit protection, and thermal shutdown, which help to prevent damage to the LED driver and the lighting system.
• High Voltage Capability: The device is capable of handling a wide range of input voltages, making it suitable for use in vehicles with different electrical system requirements.
• Programmable Current Regulation: Each channel's output current can be individually programmed to ensure consistent brightness across all connected LEDs, enhancing the visual quality of the lighting system.
• Serial Interface: The inclusion of a serial peripheral interface (SPI) allows for communication with a microcontroller, enabling control over the lighting patterns and intensities, as well as the retrieval of diagnostic information.

Applications

The L99LD20Q6TR is primarily used in automotive exterior lighting systems. It is an ideal choice for manufacturers seeking to create advanced, reliable, and efficient lighting solutions that comply with automotive safety and performance standards.

Quality and Reliability

STMicroelectronics is renowned for its commitment to quality, and the L99LD20Q6TR is no exception. It is designed to meet the rigorous conditions of the automotive environment, ensuring long-term reliability and performance under a wide range of temperatures and operating conditions.

Environmental Standards

The L99LD20Q6TR is produced with sustainability in mind. It complies with various environmental standards, including RoHS and REACH, reflecting STMicroelectronics' dedication to minimizing the environmental impact of its products.
