The ISM303DACTR is a state-of-the-art motion sensor from STMicroelectronics, designed to cater to the ever-growing demands of advanced industrial, consumer, and IoT applications. This compact, high-performance device integrates a 3-axis digital accelerometer and a 3-axis digital magnetometer into a single package, providing comprehensive inertial and magnetic data with high precision.

Key Features

• 3-Axis Accelerometer: The accelerometer component of the ISM303DACTR offers selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1 Hz to 5.3 kHz.
• 3-Axis Magnetometer: The magnetometer has a wide measurement range and high resolution, with an adjustable data rate for flexibility in various application requirements.
• Low-Power Consumption: Designed with power efficiency in mind, it is ideal for battery-operated devices, with several power modes to balance performance and power usage.
• High Accuracy: The device provides high-resolution output with low noise performance, making it suitable for precision applications.
• Advanced Features: Includes temperature compensation, programmable interrupts, and a configurable low-pass filter to enhance performance and simplify system integration.

Applications

The versatility of the ISM303DACTR allows it to be used in a wide range of applications, such as:

• Smartphones and tablets for screen orientation and navigation
• Wearable devices for activity monitoring and gesture recognition
• Industrial systems for asset tracking and vibration monitoring
• Drones and robotics for stabilization and control
• Navigation systems for dead reckoning and map updates

Technical Specifications

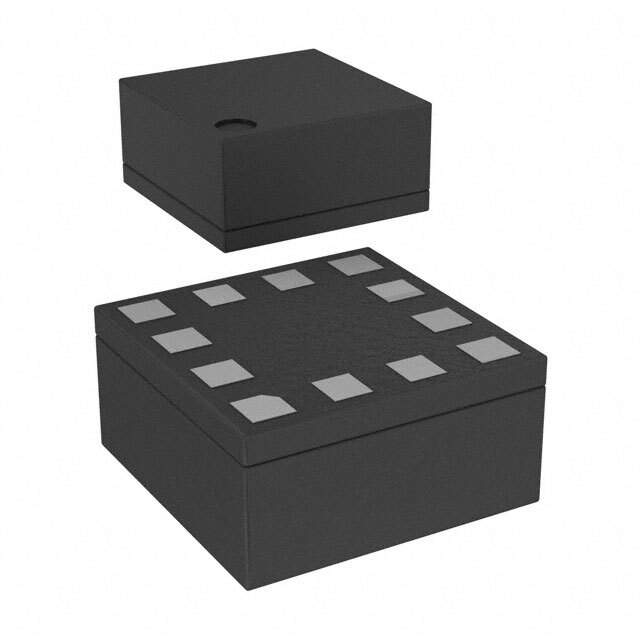

The ISM303DACTR is available in a compact LGA-12 package (2.0 x 2.0 x 1.0 mm), making it suitable for space-constrained applications. It operates over a temperature range of -40°C to +85°C, ensuring reliability across various environmental conditions.

Conclusion

With its combination of features, the ISM303DACTR from STMicroelectronics is an excellent choice for developers looking to integrate reliable motion sensing capabilities into their designs. Its small form factor, coupled with its low power consumption and high accuracy, makes it an indispensable component for modern, sophisticated electronics.
