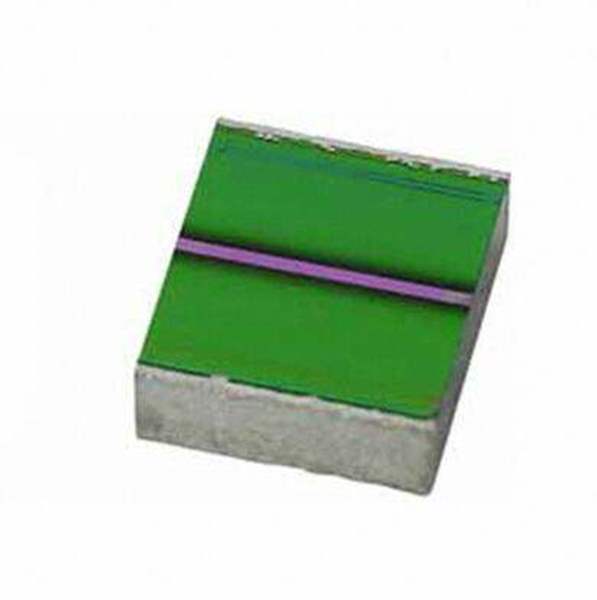

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Rubycon
Category Capacitors Film Capacitors
Part Status Active
Tolerance ±20%
Voltage Rating - DC 16V
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.079" (2.00mm)
Termination Solder Pads
Applications DC Link, DC Filtering
Win Source Part Number WS1306591-16MU225MB23225
Ultra Librarian 3D Model Ultra Librarian 16MU225MB23225 CAD Model

Description

2.2 µF Film Capacitor 16V Acrylic, Metallized 1210 (3225 Metric)
