Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 3V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 0.6pF @ 1MHz
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 10-UQFN (2.5x1)
Win Source Part Number 017073-HSP061-4M10
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSP061-4M10 CAD Model

Description

STMicroelectronics HSP061-4M10 - ESD Protection Device

The HSP061-4M10 from STMicroelectronics is a state-of-the-art ESD protection device, meticulously designed to safeguard high-speed data lines from the potentially destructive effects of electrostatic discharge (ESD). This component is a perfect fit for modern electronic applications that require both robust protection and signal integrity preservation.

The HSP061-4M10 features a quartet of high-speed channels, each capable of withstanding ESD strikes up to the IEC61000-4-2 level 4 standard. This ensures that devices equipped with this protective component can endure ESD events of up to 8 kV (contact discharge) and 15 kV (air discharge), providing a high level of security for sensitive circuitry.

One of the key advantages of the HSP061-4M10 is its ultra-low capacitance design, which typically stands at a mere 0.7 pF. This characteristic is crucial for maintaining signal integrity, especially in applications that involve high-speed data transmission such as USB 2.0, HDMI, and Gigabit Ethernet. By minimizing the capacitance load on the data lines, this ESD protector ensures that the signal quality remains pristine and unaltered.

Moreover, this component is built with a flow-through design that simplifies PCB layout and reduces signal distortion. This design approach allows for direct paths between connectors and associated circuitry, thereby optimizing the signal routing and enhancing overall performance.

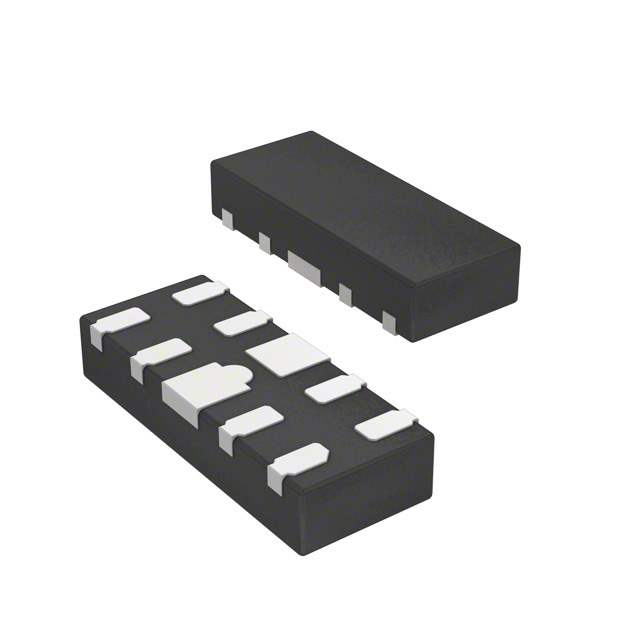

The HSP061-4M10 is housed in a compact μQFN-10 package, which not only saves valuable board space but also contributes to a reduction in parasitic inductance, further improving its protective capabilities. It is ideally suited for a wide range of applications, including smartphones, tablets, digital cameras, and other portable devices where space is at a premium and protection cannot be compromised.

In conclusion, the STMicroelectronics HSP061-4M10 represents a superior solution for ESD protection in high-speed data applications. Its combination of high ESD protection levels, ultra-low capacitance, and a space-saving design makes it an indispensable component for designers looking to enhance the durability and reliability of their electronic products.
