Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Main Purpose AC/DC, Primary and Secondary Side with PFC
Outputs and Type 1, Isolated
Power - Output 90 W
Voltage - Output 19V
Current - Output 4.75A
Voltage - Input 90 ~ 264 VAC
Regulator Topology Boost
Frequency - Switching 130kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part L6563H, L6599A, SRK2000
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1341612-EVL90WADP-LLCSR
Ultra Librarian 3D Model Ultra Librarian EVL90WADP-LLCSR CAD Model

Description

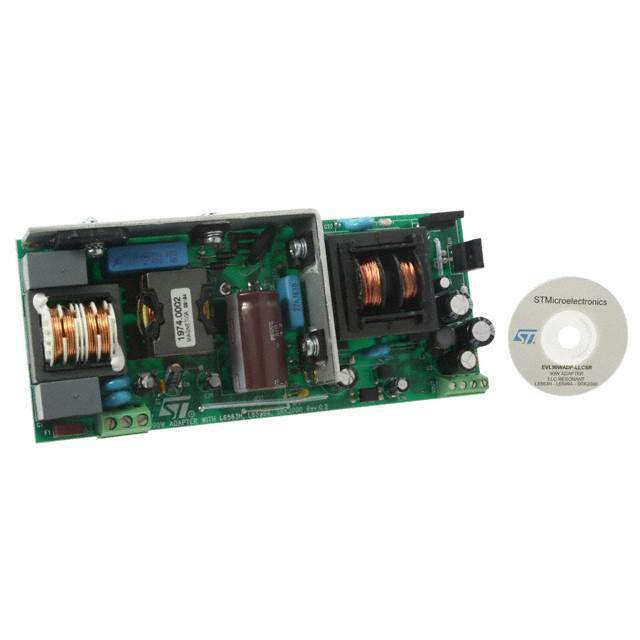

The EVL90WADP-LLCSR is a cutting-edge product from STMicroelectronics, designed to cater to the growing demand for efficient and reliable power solutions. This adapter is part of STMicroelectronics' portfolio of energy-efficient power products, aimed at reducing environmental impact without compromising on performance.

Boasting a power output of up to 90 watts, the EVL90WADP-LLCSR is perfect for powering a wide range of electronic devices. Its versatility makes it suitable for use with laptops, monitors, and other devices that require a stable and consistent power supply. The product is engineered to deliver high efficiency, which not only ensures lower energy consumption but also minimizes heat generation, thereby extending the lifespan of both the adapter and the device it powers.

The adapter features a compact and robust design, making it an excellent choice for users who require a portable power solution. It is built with durability in mind, ensuring that it can withstand the rigors of daily use. The EVL90WADP-LLCSR is also equipped with various safety features, including over-voltage, over-current, and short-circuit protection, safeguarding your devices against potential damage caused by electrical anomalies.

STMicroelectronics has incorporated the latest in power conversion technology into the EVL90WADP-LLCSR. This includes advanced power factor correction (PFC) to enhance the efficiency of power usage, and a high-quality electromagnetic interference (EMI) filter to ensure that the adapter does not introduce noise into the power line or the device it is connected to.

In summary, the EVL90WADP-LLCSR from STMicroelectronics is an excellent choice for consumers and professionals looking for a high-performance, energy-efficient, and reliable power adapter. Its combination of power, portability, and protection features positions it as a top-tier product in the power solutions market.
