STMicroelectronics EVAL6229QR Product Overview

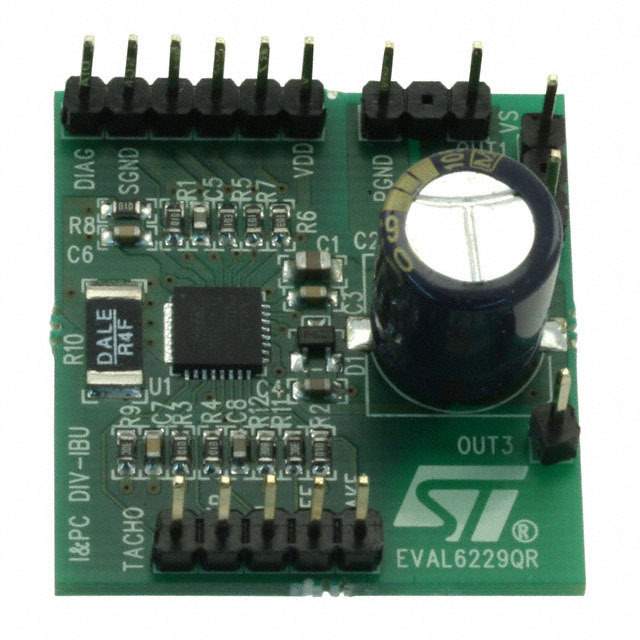

The EVAL6229QR from STMicroelectronics is an evaluation board designed for the L6229Q, a triple DMOS full-bridge driver capable of driving three DC motors or one stepper motor. This product is an excellent choice for developers and engineers looking for a reliable and efficient solution for motor control applications.

Key Features

• Integrated Power Stages: The board includes three full-bridge power stages with low RDS(on) DMOS outputs, providing efficient power management and heat dissipation for high-performance motor driving.
• Operating Voltage Range: The EVAL6229QR operates over a wide voltage range from 8 V to 52 V, making it versatile for various applications and ensuring compatibility with a broad range of motors.
• Advanced Protection Features: The board is equipped with overcurrent protection, thermal shutdown, and under-voltage lockout, ensuring the safety and longevity of both the board and the motors it controls.
• Configurable Parameters: Users can configure multiple parameters, including the operating mode, via jumpers and trimmers, allowing for fine-tuning to specific application requirements.
• Diagnostic Features: The EVAL6229QR provides real-time diagnostic information for fault detection, which is crucial for troubleshooting and maintaining system reliability.

Applications

The EVAL6229QR is suitable for a wide range of applications, including but not limited to:

• Office automation machines
• Factory automation and robotics
• Consumer electronics
• Point of sale machines

Design and Development Support

STMicroelectronics provides comprehensive support for the EVAL6229QR, including detailed documentation, reference design files, and technical support from their team of experts. This ensures a smooth development process and helps reduce time-to-market for products incorporating the EVAL6229QR.

Overall, the EVAL6229QR evaluation board is an excellent tool for prototyping and testing motor control designs, offering robust features and a high degree of flexibility to meet the needs of advanced motor control systems.
