Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 3V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 37V (Typ)
Peak Pulse Current(Ippm) 1.3A (8/20μs)
Power Dissipation - Pd 40W
Applications Automotive
Capacitance @ Frequency 0.4pF @ 200MHz to 3GHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-882T
Win Source Part Number 1037159-ESDAXLC6-1BT2Y
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ESDAXLC6-1BT2Y CAD Model

Description

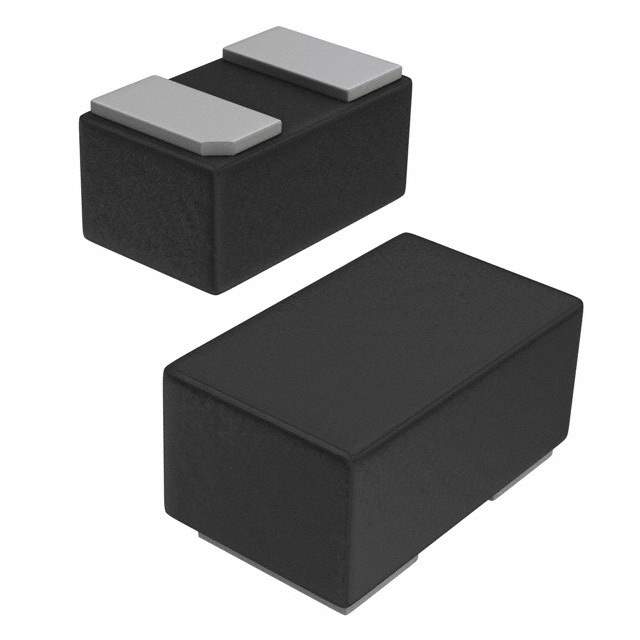

STMicroelectronics ESDAXLC6-1BT2Y - ESD Protection Device

The ESDAXLC6-1BT2Y from STMicroelectronics is a cutting-edge ESD protection device designed to safeguard sensitive electronic components from electrostatic discharge (ESD) events. This device is a part of STMicroelectronics' Transilâ„¢ series, which is known for providing robust protection for vulnerable circuits against transient voltage spikes.

Key Features:

  • Low Clamping Voltage: The ESDAXLC6-1BT2Y offers an extremely low clamping voltage, ensuring that it can effectively clamp ESD strikes to a safe level, protecting the components downstream.
  • High ESD Protection Level: With a high ESD protection level, this device can withstand ESD surges in accordance with the IEC 61000-4-2 standard, making it an ideal choice for high-reliability applications.
  • Single Line Protection: Designed to protect one data line, it offers a focused approach to ESD protection, making it suitable for individual high-speed data or signal lines.
  • Very Low Leakage Current: The low leakage current of this device ensures minimal impact on the normal operation of the protected circuit, maintaining signal integrity and reducing power consumption.
  • Small Package Size: The ESDAXLC6-1BT2Y comes in a tiny SOD-882 package, which is ideal for space-constrained applications, allowing designers to incorporate ESD protection without compromising on board space.

Applications:

The ESDAXLC6-1BT2Y is suitable for a wide range of applications, including:

  • Mobile devices such as smartphones and tablets
  • Portable electronics and wearables
  • Data lines for USB, HDMI, and other high-speed interfaces
  • Wireless communication systems
  • Computing and peripheral devices

Overall, the ESDAXLC6-1BT2Y is a highly effective solution for protecting sensitive electronics from the potentially damaging effects of ESD. Its blend of low clamping voltage, high ESD protection level, and small form factor makes it a top choice for designers looking to enhance the durability and longevity of their products.
