Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr STMicroelectronics
Series ESDA
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V
Voltage - Breakdown (Min) 6.4V
Voltage - Clamping (Max) @ Ipp 11.5V
Current - Peak Pulse (10/1000µs) 120A (8/20µs)
Power - Peak Pulse 1400W (1.4kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount

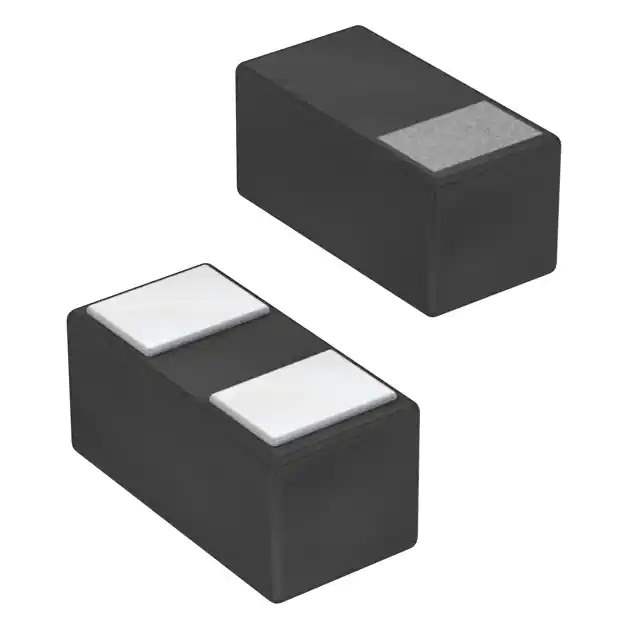

Package / Case 2-UDFN
Supplier Device Package 1610
Base Product Number ESDA7
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 850903-ESDA7P120-1U1M
Ultra Librarian 3D Model Ultra Librarian ESDA7P120-1U1M CAD Model

Description

STMicroelectronics ESDA7P120-1U1M ESD Protection Device

The ESDA7P120-1U1M from STMicroelectronics is a state-of-the-art ESD protection device, designed to safeguard high-speed data lines and other sensitive circuits from the detrimental effects of Electrostatic Discharge (ESD). This robust component is an essential addition for any application requiring reliable ESD protection, particularly in the realm of telecommunications, computing, and industrial systems where the integrity of data and the longevity of electronic components are of paramount importance.

Key Features

  • Transient Protection: The ESDA7P120-1U1M is capable of withstanding ESD surges in accordance with the IEC 61000-4-2 standard, ensuring your electronic devices remain safe from sudden and unexpected electrical spikes.
  • Low Capacitance: With a very low line capacitance, this protection device is ideal for preserving signal integrity in high-speed data lines, preventing any significant impact on data transfer rates or signal quality.
  • Uni-directional Device: This component is designed to offer protection in one direction, making it a suitable choice for applications with a known direction of potential ESD events.
  • Compact Package: Housed in a small μQFN-5L package, the ESDA7P120-1U1M minimizes board space requirements, which is crucial for modern, space-constrained electronic designs.
  • High Reliability: Manufactured by STMicroelectronics, a leader in semiconductor solutions, the ESDA7P120-1U1M is built to meet high-quality standards, ensuring reliable performance over its lifespan.

Applications

The ESDA7P120-1U1M is versatile in its applications, effectively serving a wide array of industries. It is commonly used in:

  • USB 2.0 and 3.0 interfaces
  • HDMI and DisplayPort interfaces
  • SATA and eSATA ports
  • External storage devices
  • Smartphones, tablets, and other portable devices
  • Networking and communication equipment

Whether you're designing consumer electronics or industrial machinery, the ESDA7P120-1U1M from STMicroelectronics is an indispensable component that provides robust protection against ESD, ensuring the safety and reliability of your electronic devices.
