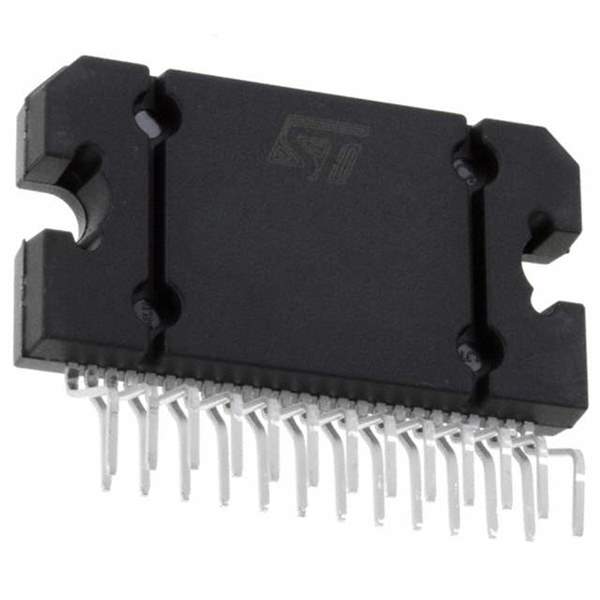

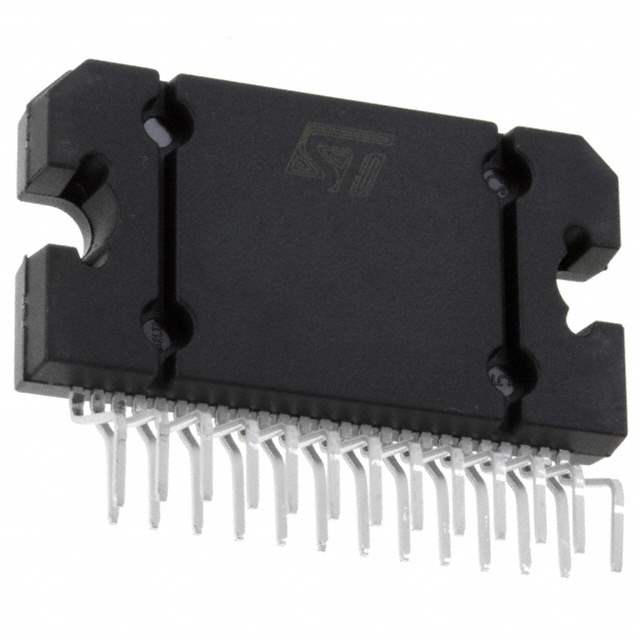

The E-TDA7386 from STMicroelectronics is an advanced BCD (Bipolar CMOS DMOS) technology class AB Audio Power Amplifier designed to provide high-quality sound output with minimal external components. This integrated circuit is specifically engineered for car radio applications, offering an impressive blend of power efficiency and audio performance.

Key Features

• High output power capability:
  • 4 x 45W/4Ω max.
  • 4 x 28W/4Ω @14.4V, 1KHz, 10%
• Flexibility in use with multiple speaker configurations (2Ω to 8Ω)
• Low distortion and low output noise
• Standby function and mute function
• Automute at min. supply voltage detection
• Low external component count:
• Internally fixed gain (26dB)
• No external compensation
• No bootstrap capacitors

Performance Benefits

The E-TDA7386 is recognized for its robust performance and reliability. It provides a high-quality audio experience with low harmonic distortion and noise. The device is equipped with a standby function, which allows for significant power savings when the amplifier is not in use. The mute function is also beneficial for users, providing immediate silence when needed without having to adjust the volume or turn off the system.

Applications

While the E-TDA7386 is primarily designed for car radio systems, its versatility makes it suitable for a wide range of audio applications requiring high power output and fidelity. These include home audio systems, personal computers, and other audio electronics where power efficiency and sound quality are desired.

Conclusion

The E-TDA7386 stands as a testament to STMicroelectronics' commitment to high-quality audio solutions. With its powerful output, low distortion, and user-friendly features, this audio power amplifier is an excellent choice for manufacturers and hobbyists alike looking to enhance their audio systems with reliable and efficient performance.
