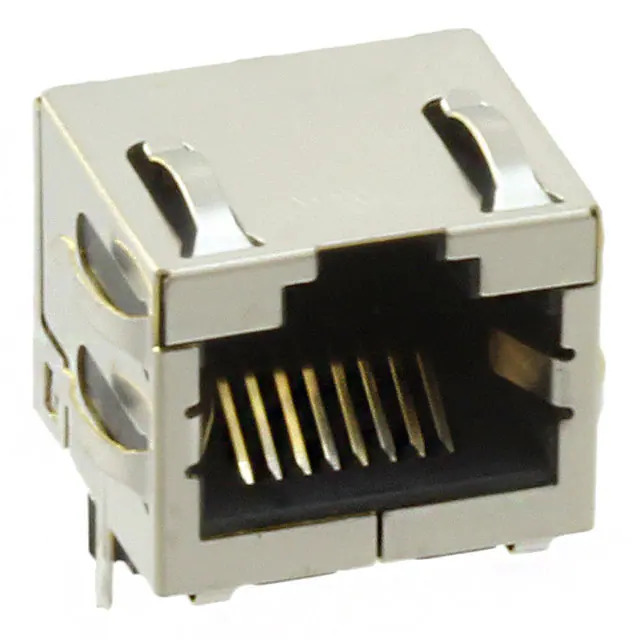

SS-60300-010 Stewart Connector
Same model may have multiple batches, images only for reference.

SS-60300-010

Part No SS-60300-010
Manufacturer Stewart Connector
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat6a
Datasheet
SS-60300-010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr Stewart Connector
Series 60300
Package Bulk
Product Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Ratings Cat6a
Features Board Guide
LED Color Does Not Contain LED
Ingress Protection -
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Thermoplastic
Base Product Number SS-60300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1352379-SS-60300-010
Ultra Librarian 3D Model Ultra Librarian SS-60300-010 CAD Model

Description

The SS-60300-010 is a modular connector jack from Stewart Connector.

  • Manufacturer: Stewart Connector
  • Series: 60300
  • Packaging: Bulk
  • Feature: Board Guide
  • Mounting Type: Through Hole
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Category: Cat6a
  • REACH: Unaffected
  • Shielding: Shielded with EMI Finger
  • Orientation: 90° Angle
  • Configuration: 8p8c (RJ45, Ethernet)
  • Termination: Solder
  • Housing Material: Thermoplastic
  • Row: Single Row
  • Ports: 1
  • LED: No LED
  • Tab Direction: Upward
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
