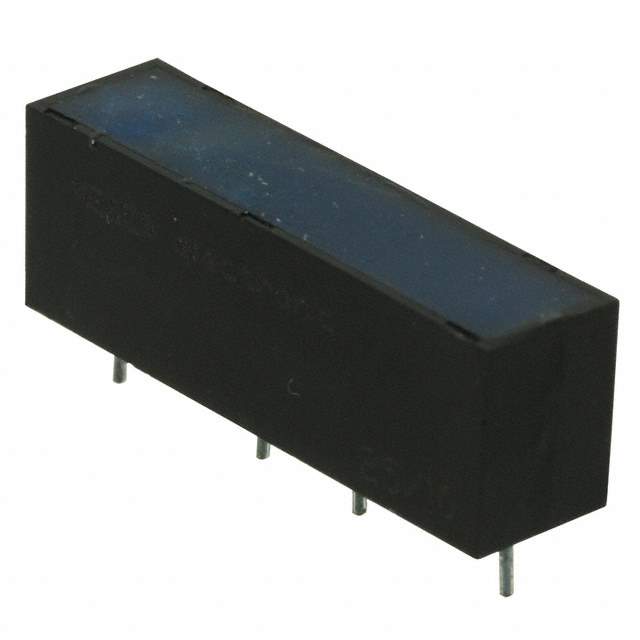

SIL05-1A85-76D3K Real Image
Same model may have multiple batches, images only for reference.

SIL05-1A85-76D3K

Part No SIL05-1A85-76D3K
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description RELAY REED SPST 1A 5V / SIL Reed Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Standex-Meder Electronics
Packaging Tube
Part Status Obsolete (End Of Life)
Mounting Style Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 1A
Switching Voltage 1000VAC, 1000VDC - Max
Coil Current 22.8mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Must Operate Voltage 3 VDC
Must Release Voltage 0.5 VDC
Operate Time 1.1ms
Release Time 0.1ms
Temperature Range - Operating -20°C ~ 70°C
Coil Resistance 220 Ohms
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814137-SIL05-1A85-76D3K
Ultra Librarian 3D Model Ultra Librarian SIL05-1A85-76D3K CAD Model

Description

The Standex-Meder Electronics 814137-SIL05-1A85-76D3K is a non-latching SPST-NO (1 Form A) relay.

  • Coil Voltage: 5VDC
  • Coil Resistance: 220 ohms
  • Contact Rating: 1A
  • Switching Voltage: 1000VAC/1000VDC max
  • Operating Temperature: -20°C to 70°C
  • Seal Rating: -
  • Package: Tube
  • Terminations: PC pin
  • Status: Obsolete (end of life)
  • Popularity: Low
  • Supply and Demand Status: Limited
