Same model may have multiple batches, images only for reference.

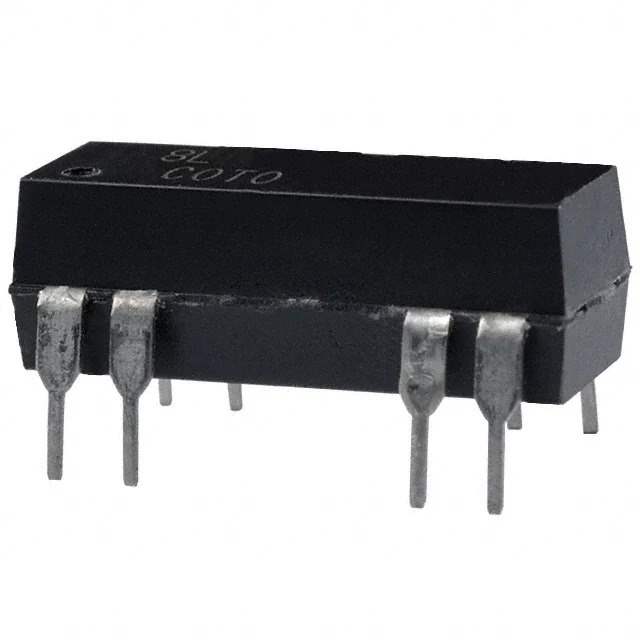

8L02-24-11 Real Image
Same model may have multiple batches, images only for reference.

8L02-24-11

Part No 8L02-24-11
Manufacturer Coto Technology
Catalog Reed Relays
Description RELAY REED DPST 500MA 24V
Datasheet
8L02-24-11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Coto Technology
Series 8L
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 12 mA
Coil Type Non Latching
Features Diode, Electrostatic Shield
Termination Style PC Pin
Must Operate Voltage 19.2 VDC
Must Release Voltage 2 VDC
Operate Time 0.5 ms
Release Time 0.5 ms
Temperature Range - Operating -20°C ~ 85°C
Coil Resistance 2 kOhms
Base Product Number 8L02
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 843992-8L02-24-11
Ultra Librarian 3D Model Ultra Librarian 8L02-24-11 CAD Model

Description

The 8L02-24-11 is a DPST-NO (2 Form A) reed relay from Coto Technology.

  • Manufacturer: Coto Technology
  • Type: Reed Relay
  • Contact Arrangement: DPST-NO (2 Form A)
  • Series: 8L
  • Termination: PC Pin
  • Features: Diode, Electrostatic Shield
  • Coil Voltage: 24VDC
  • Coil Resistance: 2 kOhms
  • Coil Current: 12 mA
  • Contact Rating: 500 mA
  • Switching Voltage (AC/DC): Up to 200V
  • Operate Time: 0.5 ms
  • Release Time: 0.5 ms
  • Mounting: Through-hole
  • Operating Temperature Range: -20°C to 85°C
  • Applications: Industrial control, telecommunications, test equipment
