Same model may have multiple batches, images only for reference.

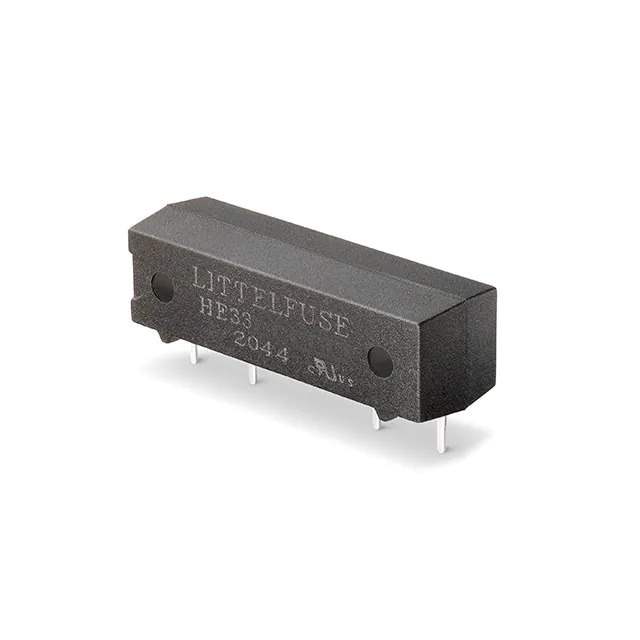

HE3321A0400 Real Image
Same model may have multiple batches, images only for reference.

HE3321A0400

Part No HE3321A0400
Manufacturer Littelfuse Inc.
Catalog Reed Relays
Description RELAY REED SPST 500MA 5V
Datasheet
HE3321A0400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Littelfuse Inc.
Series HE3300
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VDC - Max
Coil Current 10 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 1 ms
Release Time 1 ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 500 Ohms
Standard Package 480 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 873484-HE3321A0400
Ultra Librarian 3D Model Ultra Librarian HE3321A0400 CAD Model

Description

The HE3321A0400 is a SPST-NO (1 Form A) reed relay used in relay applications.

  • Termination Style: PC pin
  • Package: Bulk
  • Standard Package Quantity: 480 pcs
  • Coil Resistance: 500 Ohms
  • Coil Current: 10 mA
  • Operate Time: 1 ms
  • Release Time: 1 ms
  • Coil Type: Non-latching
  • Coil Voltage: 5VDC
  • Contact Rating (Current): 500 mA
  • Switching Voltage: 200VDC maximum
  • Mounting Technology: Through-hole
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: Littelfuse Inc.
