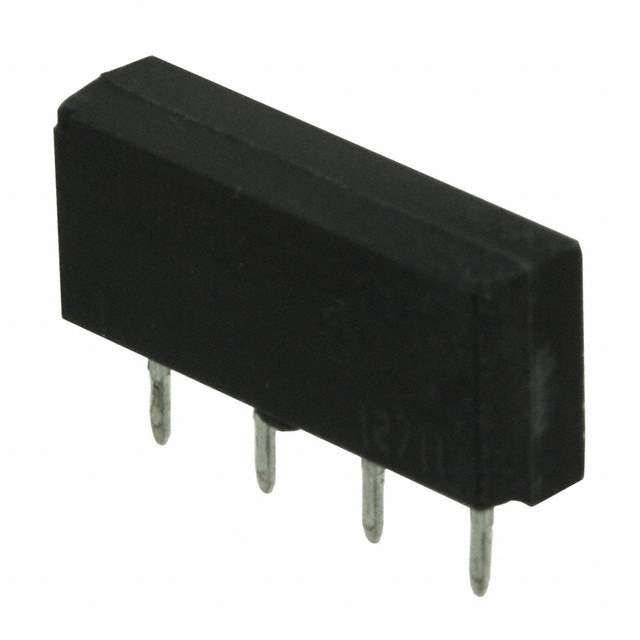

The MS series reed relay is a SPST-NO (1 Form A) contact form relay featuring PC pin termination style. The relay has a coil voltage of 12VDC and a coil resistance of 700 Ohms. The switching voltage for this relay is 200VAC, 200VDC - Max, and the contact rating (current) is 500 mA. The operate time for this non-latching coil type relay is 0.5 ms, while the release time is 0.1 ms. The relay is rated for a temperature range of -20°C to 70°C. The MS series reed relay is manufactured by Standex-Meder Electronics.

• Coil Voltage: 12VDC
• Coil Resistance: 700 Ohms
• Switching Voltage: 200VAC, 200VDC - Max
• Contact Rating (Current): 500 mA
• Operate Time: 0.5 ms
• Release Time: 0.1 ms
• Temperature Range: -20°C to 70°C
