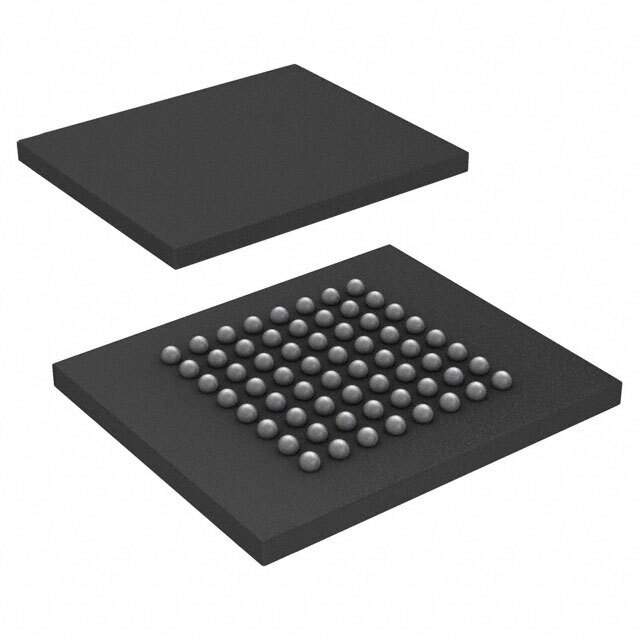

The S29GL256N11FFIIH is a 256 Mbit (32MB) NOR Flash memory device manufactured by Spansion (now Cypress Semiconductor, then Infineon Technologies). It is designed for embedded systems requiring non-volatile storage of code and data. This Flash memory device provides fast read access times and reliable storage capabilities.

Applications

• Embedded Systems: Stores boot code, firmware, and configuration data in embedded systems.
• Networking Equipment: Used in routers, switches, and other network devices.
• Automotive Systems: Implemented in automotive electronic control units (ECUs).
• Industrial Automation: Found in industrial control systems for storing program code.
• Consumer Electronics: Used in set-top boxes, digital cameras, and other consumer devices.

Features

• Memory Size: 256 Mbit (32MB)
• Interface: Parallel NOR Flash
• Supply Voltage: 3.0V
• Read Access Time: 110 ns
• Erase Cycles: 100,000 cycles
• Package: 56-pin TSOP (Thin Small Outline Package)
• Operating Temperature: -40°C to +85°C

Benefits

• Non-Volatile Storage: Retains data even when power is removed.
• Fast Read Access: Provides quick access to stored data.
• High Endurance: Withstands a large number of erase cycles.
• Wide Operating Temperature Range: Operates reliably in harsh environments.
• Compact Package: Small package size for space-constrained applications.

Technical Specifications

The S29GL256N11FFIIH operates at a supply voltage of 3.0V. The read access time is 110 ns. The erase cycle endurance is rated for 100,000 cycles per block. The operating temperature range is from -40°C to +85°C. The package is a 56-pin TSOP (Thin Small Outline Package). The memory array is organized into uniform 128KB blocks for erase operations. It features a parallel data interface and control signals for read, write, and erase operations. The device supports sector protection features to prevent accidental overwrites. Power consumption during read operations is typically low, making it suitable for battery-powered applications. The standby current is extremely low to minimize power drain when the device is not actively being used. The device is RoHS compliant and lead-free. The boot sector configuration allows flexibility in system boot-up procedures.
