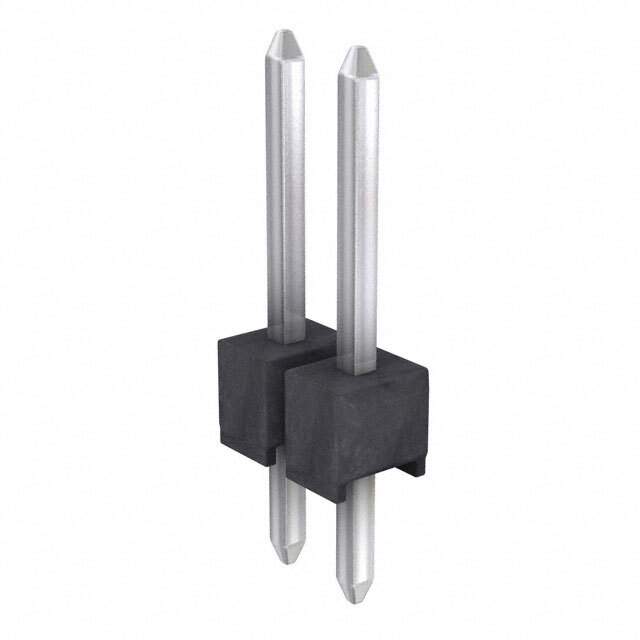

M20-9990246 Real Image
Same model may have multiple batches, images only for reference.

M20-9990246

Part No M20-9990246
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Datasheet
M20-9990246 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Harwin Inc.
Packaging Bulk
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.460" (11.68mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A per Contact
Mated Stacking Heights 10.04mm, 10.64mm, 11.04mm, 16.54mm
Base Product Number M20-999
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 952-2262,Q7792962E,M209990246
Standard Package 1,000
Win Source Part Number 1332807-M20-9990246
Ultra Librarian 3D Model Ultra Librarian M20-9990246 CAD Model

Description

The M20-9990246 is a header male pin connector designed for connectors, interconnects - rectangular connectors.

  • Packaging: Bulk
  • Positions: 2
  • Contact Type: Male Pin
  • Termination: Solder
  • Standard Package: 1,000
  • Manufacturer: Harwin Inc.
  • Insulation Material: Polyamide (PA6T), nylon 6T
  • Pitch - Mating: 0.100" (2.54mm)
  • Temperature Range: -40°C ~ 105°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
