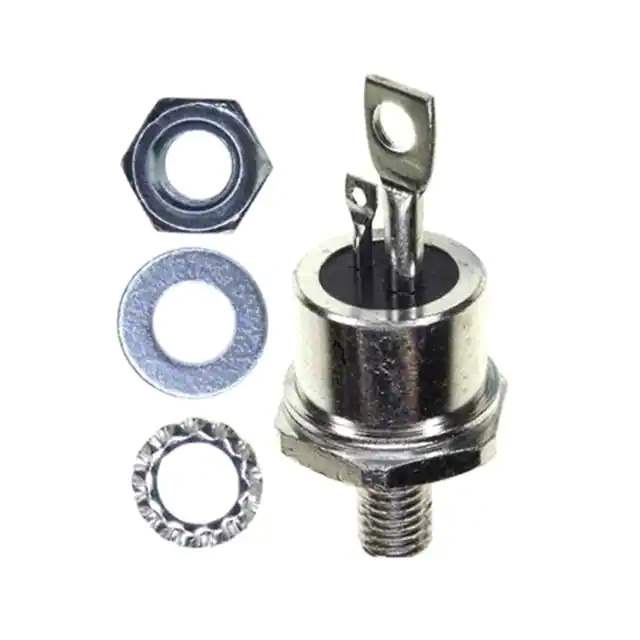

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Solid State Inc.
Series 50RIA
Package Bulk
Product Status Active
Voltage - Off State 1 kV
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - Gate Trigger (Igt) (Max) 100 mA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 50 A
Current - On State (It (RMS)) (Max) 80 A
Current - Hold (Ih) (Max) 200 mA
Current - Off State (Max) 15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1430A, 1490A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C (TC)
Mounting Type Stud Mount
Package / Case TO-208AC, TO-65-3, Stud
Supplier Device Package TO-208AC (TO-65)
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 546307-50RIA100
Ultra Librarian 3D Model Ultra Librarian 50RIA100 CAD Model

Description

The 546307-50RIA100 is a thyristor SCR in a TO-208AC, TO-65-3, Stud package.

  • Series: 50RIA
  • Package: bulk (10 pcs)
  • Hold Current (Ih): 200mA
  • Off-State Voltage: 1kV
  • Gate Trigger Voltage (Vgt): 2.5V
  • Gate Trigger Current (Igt): 100mA
  • On-State Voltage (Vtm): 1.6V
  • On-State Current (It (AV)): 50A
  • Off-State Current: 15mA
  • Non-Repetitive Surge Current (50Hz): 1430A
  • Non-Repetitive Surge Current (60Hz): 1490A
  • SCR Type: standard recovery
  • Mounting: stud
  • Operating Temperature: -40°C to 125°C (TC)
