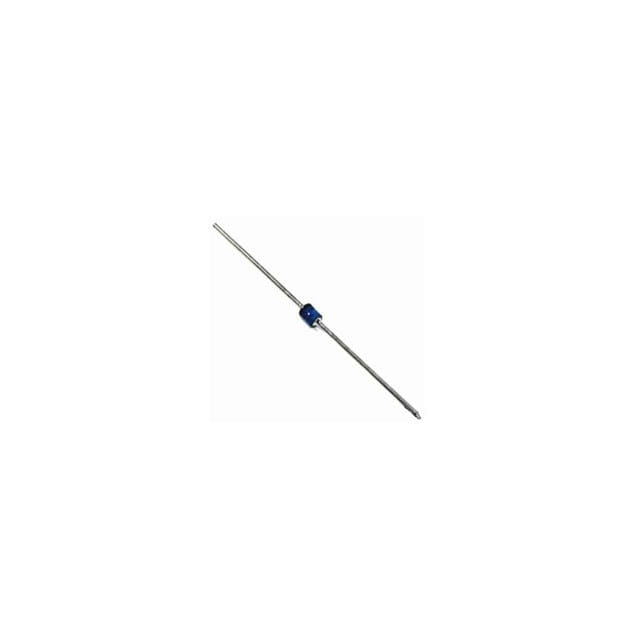

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Solid State Inc.
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 875 mV @ 4 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 5 µA @ 50 V
Mounting Through Hole
Case / Package Axial
Supplier Device Package Axial
Operating Temperature - Junction -65°C ~ 175°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 2383-1N5807
Standard Package 10
Win Source Part Number 1324287-1N5807
Ultra Librarian 3D Model Ultra Librarian 1N5807 CAD Model

Description

The Solid State Inc. 1N5807 is a fast-recovery standard diode that can handle a maximum reverse voltage of 50V and average rectified current of 6A.

  • Maximum Reverse Voltage: 50V
  • Average Rectified Current: 6A
  • Reverse Recovery Time: 30ns
  • Leakage Current: 5µA @ 50V
  • Packaging: Bulk
  • Standard Package: 10
  • Operating Temperature Range: -65°C to 175°C
