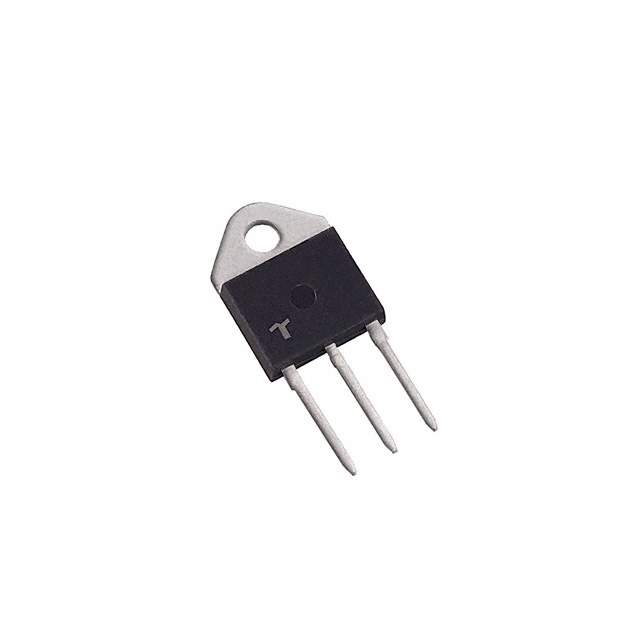

The S2065KTP is an electronic component manufactured by Littelfuse Inc.

• Manufacturer: Littelfuse Inc.
• Status: Obsolete
• Supply and Demand: Limited
• Win Source Part Number: 1245045
• Family: S2065K
• Applications: Safety, automation & process control, lighting, HVAC, consumer electronics, motor drive & control, commercial, industrial, power management
• Packaging: Tube
• Mounting: Through-hole
• Operating Temperature: -40°C ~ 125°C
• Package: TO-218-3 (Isolated), TO-218AC
• Voltage - Off State: 200V
• Current - Non Rep. Surge 50, 60Hz (Itsm): 800A, 950A
• SCR Type: Standard recovery
• Manufacturer Homepage: www.littelfuse.com
• Manufacturer Package: TO-218 Isolated Tab
• Current - On State (It (RMS)): 65A
• Voltage - Gate Trigger (Vgt): 2V
• Current - Gate Trigger (Igt): 50mA
• Current - Hold (Ih): 80mA
• Voltage - On State (Vtm): 1.8V
• Current - On State (It (AV)): 41A
• Current - Off State: 20μA
• Introduction Date: September 08, 2004
• Country of Origin: China
• EOL Date: Obsolete
