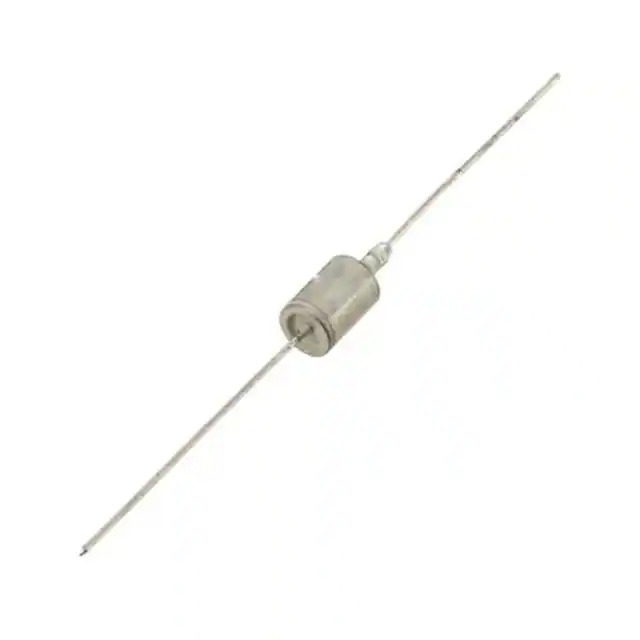

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Solid State Inc.
Series -
Package Bulk
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 14.3V
Voltage - Clamping (Max) @ Ipp 21.2V
Current - Peak Pulse (10/1000µs) 71A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Mounting Type Through Hole
Package / Case DO-13
Supplier Device Package DO-13
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1377375-1N6043A
Ultra Librarian 3D Model Ultra Librarian 1N6043A CAD Model

Description

The 1377375-1N6043A is a Zener diode from Solid State Inc. Solid State Inc. manufactures the 1377375-1N6043A.

  • Voltage Reverse Standoff: 12V
  • Breakdown Voltage: 14.3V
  • Clamping Voltage: 21.2V @ 71A
  • Power Rating: 1500W
  • Polarity: Bidirectional
  • Package: DO-13
  • Mounting Type: Through-Hole
