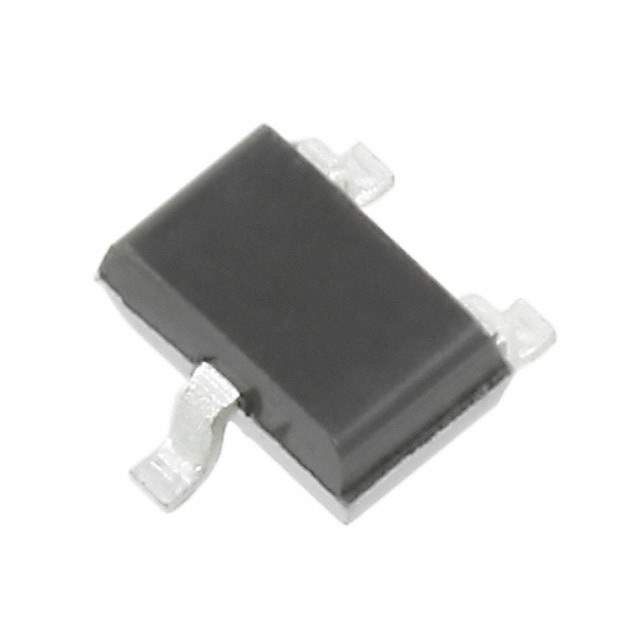

SMP1320-077LF Real Image
Same model may have multiple batches, images only for reference.

SMP1320-077LF

Part No SMP1320-077LF
Manufacturer Skyworks Solutions Inc.
Catalog RFFETs
Description RF DIODE PIN 50V 250MW SC70-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features RF Diode PIN - Single 50V 250 mW SC-70-3
Manufacturer Skyworks Solutions Inc.
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -65°C ~ 150°C (TA)
Package SC-70, SOT-323
Case / Package SC-70-3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number 1287-SMP1320-077LF, 863-1680-6, 863-1680-1, 863-1680-2
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934398-SMP1320-077LF
Ultra Librarian 3D Model Ultra Librarian SMP1320-077LF CAD Model

Description

The Skyworks Solutions Inc. SMP1320-077LF is an RF diode PIN - single 50V 250 mW SC-70-3 package.

  • Type: RF diode PIN - single
  • Voltage: 50V
  • Power: 250 mW
  • Package: SC-70-3 package
  • Category: Discrete semiconductor products
  • Operating temperature range: -65°C to 150°C (TA)
  • Compliance: RoHS compliant
  • Package: Reel package
  • Quantity: 3000 pcs
  • ECCN: EAR99
  • MSL level: 1 (Unlimited)
  • Alternative part numbers: 1287-SMP1320-077LF, 863-1680-6, 863-1680-1, 863-1680-2
