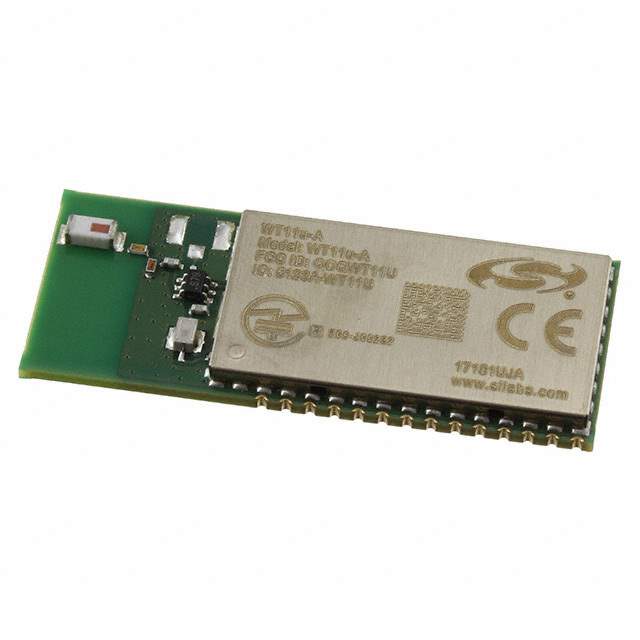

WT11U-A-AI56 Real Image
Same model may have multiple batches, images only for reference.

WT11U-A-AI56

Part No WT11U-A-AI56
Manufacturer Silicon Labs
Catalog RF Receivers
Description RX TXRX MOD BLUETOOTH CHIP SMD  /  Bluetooth Bluetooth v2.1 +EDR Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Datasheet
WT11U-A-AI56 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Silicon Labs
Package Tape & Reel
Product Status Not For New Designs
RF Family/Standard Bluetooth
Protocol Bluetooth v2.1 +EDR
Frequency 2.4GHz
Power - Output 16.5dBm
Sensitivity -88dBm
Serial Interfaces SPI, USART, USB
Antenna Type Integrated, Chip
Voltage - Supply 2.7V ~ 3.6V
Current - Receiving 36mA
Current - Transmitting 110mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number WT11
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Other Names 336-3919-6,336-3919-1,336-3919-2
Standard Package 500
Win Source Part Number 1104960-WT11U-A-AI56
Ultra Librarian 3D Model Ultra Librarian WT11U-A-AI56 CAD Model

Description

The 1104960-WT11U-A-AI56 is a Bluetooth transceiver module designed for RF/IF and RFID applications.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v2.1 +EDR
  • Antenna: Integrated chip antenna
  • Power Output: Up to 16.5dBm
  • Sensitivity: -88dBm
  • Current Consumption (Receiving): 36mA
  • Current Consumption (Transmitting): 110mA
  • Serial Interfaces: SPI, USART, and USB
  • Voltage Range: 2.7V to 3.6V
  • Package: Module
  • Temperature Range: -40°C to 85°C
