Same model may have multiple batches, images only for reference.

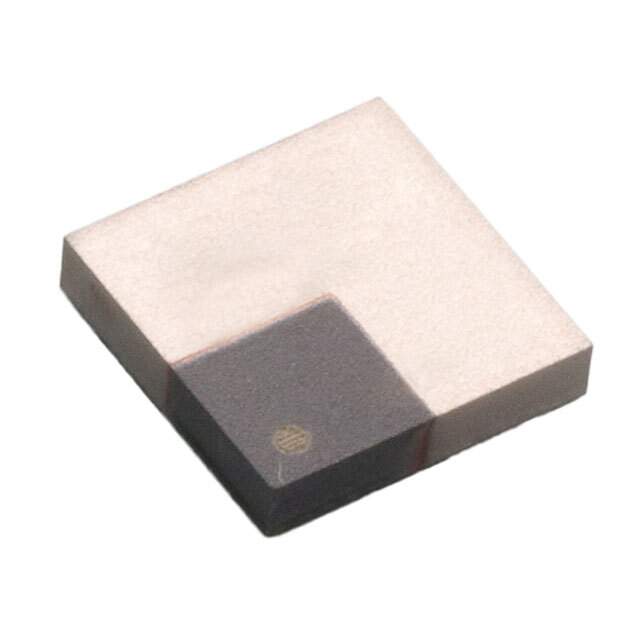

BGM13S22F512GA-V3 Real Image
Same model may have multiple batches, images only for reference.

BGM13S22F512GA-V3

Part No BGM13S22F512GA-V3
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description BT SIP MOD 2.4GHZ 512KB / Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz ~ 2.4835GHz Integrated, Chip Surface Mount
Datasheet
BGM13S22F512GA-V3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Silicon Labs
Series Blue Gecko
Package Tray
RF Family/Standard Bluetooth
Protocol Bluetooth v5.0
Modulation GFSK
Frequency 2.4GHz ~ 2.4835GHz
Data Rate 2Mbps
Power - Output 8dBm
Sensitivity -102.1dBm
Serial Interfaces I²C, I²S, IrDA, SPI, UART
Antenna Type Integrated, Chip
Utilized IC / Part EFR32BG13
Memory Size 512kB Flash, 64kB RAM
Voltage - Supply 1.8V ~ 3.8V
Current - Receiving 9.4mA ~ 11.5mA
Current - Transmitting 8.9mA ~ 122.7mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case 51-SMD Module
Base Product Number BGM13
Standard Package 260
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1339425-BGM13S22F512GA-V3
Ultra Librarian 3D Model Ultra Librarian BGM13S22F512GA-V3 CAD Model

Description

The 1339425-BGM13S22F512GA-V3 RF Transceiver Module is a Bluetooth v5.0 device that operates @ a frequency range of 2.4GHz to 2.4835GHz.

  • Bluetooth Version: v5.0
  • Frequency Range: 2.4GHz to 2.4835GHz
  • Antenna: Integrated Chip Antenna
  • Power Output: 8dBm
  • Sensitivity: -102.1dBm
  • Receiving Current: 9.4mA to 11.5mA
  • IC: EFR32BG13
  • Serial Interfaces: I²C, I²S, IrDA, SPI, UART
  • Transmitting Current: 8.9mA to 122.7mA
  • Voltage Supply: 1.8V to 3.8V
  • Package: 51-SMD Module
  • Operating Temperature: -40°C to 85°C
