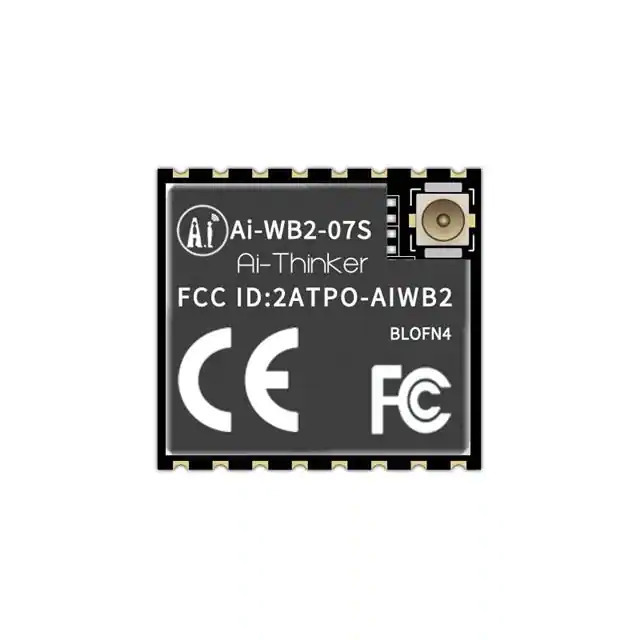

AI-WB2-07S Ai-Thinker
Same model may have multiple batches, images only for reference.

AI-WB2-07S

Part No AI-WB2-07S
Manufacturer Ai-Thinker
Catalog RF Transceiver Modules
Description WIFI + BLE5.0 MODULE, BL602 CHIP
Datasheet
AI-WB2-07S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Strip
Product Status Active
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v5.0
Modulation -
Frequency 2.4GHz
Data Rate 72.2Mbps
Power - Output 19dBm
Sensitivity -98dBm
Serial Interfaces GPIO, I²C, PWM, SDIO, SPI, UART
Antenna Type Antenna Not Included, I-PEX
Utilized IC / Part BL602
Memory Size 4MB Flash
Voltage - Supply 2.7V ~ 3.6V
Current - Receiving 65mA
Current - Transmitting 230mA ~ 260mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 16-SMD Module
MSL Level Not Applicable
ECCN 5A002A1
HTSUS 8517.62.0090
Win Source Part Number 1370893-AI-WB2-07S
Ultra Librarian 3D Model Ultra Librarian AI-WB2-07S CAD Model

Description

The 1370893-AI-WB2-07S is an RF Transceiver Module designed for wireless communication applications.

  • Frequency: 2.4GHz
  • Protocols: Bluetooth and WiFi
  • Voltage Supply Range: 2.7V to 3.6V
  • Flash Memory: 4MB
  • Power Output: 19dBm
  • Sensitivity: -98dBm
  • Module Package: 16-SMD
  • Serial Interfaces: GPIO, I²C, PWM, SDIO, SPI, UART
  • Manufacturer: Ai-Thinker
