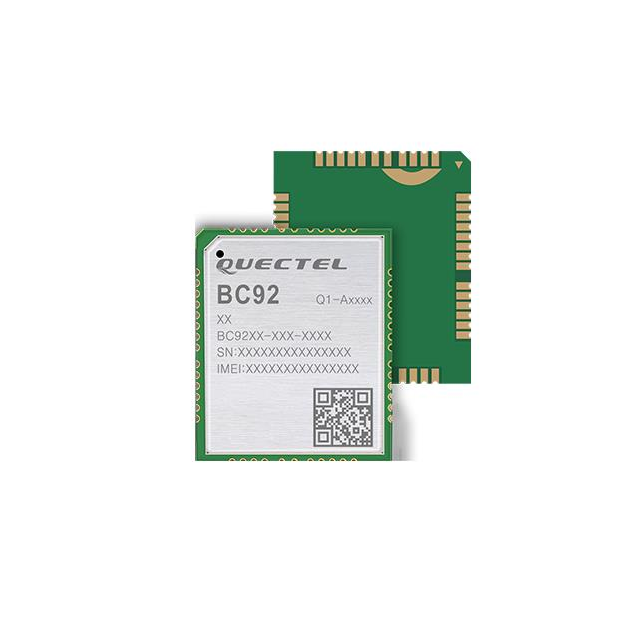

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1202888-BC92RB-08-STD
Manufacturer Quectel
Category RF and Wireless- RF Transceiver Modules and Modems
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Not For New Designs
Data Rate 158.5kbps
Voltage - Supply 3.4V ~ 4.2V
Current - Receiving 1.2mA
Operating Temperature -25°C ~ 75°C
Package / Case 50-SMD Module
Base Product Number BC92
Ultra Librarian 3D Model Ultra Librarian BC92RB-08-STD CAD Model

Description

The Quectel RF Transceiver Module is a high-quality electronic component that is designed for RF and wireless applications.

  • Package: 50-SMD Module
  • Data Rate: 158.5kbps
  • Voltage Supply: 3.4V to 4.2V
  • Receiving Current: 1.2mA
  • Operating Temperature: -25°C to 75°C
  • Product Status: Not Recommended for New Designs
