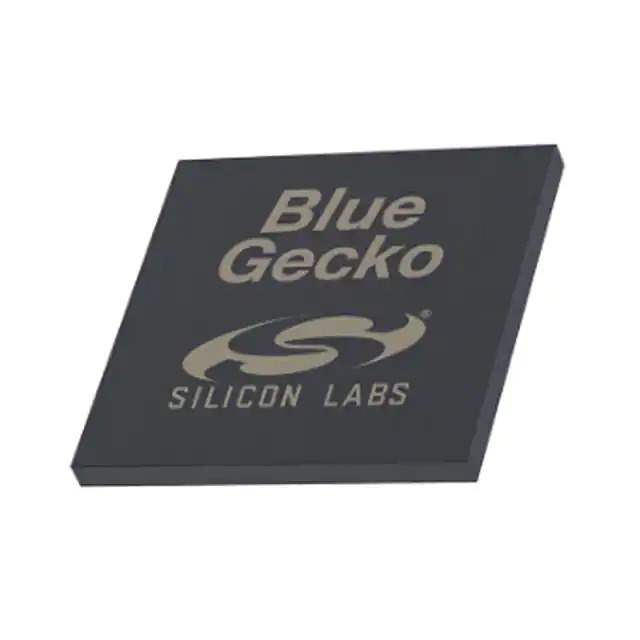

BGM123A256V2 Real Image
Same model may have multiple batches, images only for reference.

BGM123A256V2

Part No BGM123A256V2
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH CHIP SMD / Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Silicon Labs
Package Tray
Product Status Active
Programmable Not Verified
RF Family/Standard Bluetooth
Protocol Bluetooth v4.2
Modulation GFSK
Frequency 2.4GHz
Data Rate 1Mbps
Power - Output 8dBm
Sensitivity -90dBm
Serial Interfaces I2C, I2S, SPI, UART
Antenna Type Integrated, Chip
Utilized IC / Part EFR32BG
Memory Size 256kB Flash, 32kB RAM
Voltage - Supply 1.85V ~ 3.8V
Current - Receiving 9mA
Current - Transmitting 8.2mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 56-SMD Module
Base Product Number BGM123
Standard Package 260 pcs
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 913331-BGM123A256V2
Ultra Librarian 3D Model Ultra Librarian BGM123A256V2 CAD Model

Description

The BGM123A256V2 is an RF Transceiver Module and Modem from Silicon Labs. It operates @ a frequency of 2.4GHz and supports Bluetooth v4.2 protocol.

  • Data Rate: 1Mbps
  • Memory: 256kB flash and 32kB RAM
  • Antenna: Integrated chip antenna
  • Programmable: No
  • Power Output: 8dBm
  • Sensitivity: -90dBm
  • Receiving Current: 9mA
  • Transmitting Current: 8.2mA
  • Voltage Supply: 1.85V to 3.8V
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • MSL Level: 3 (168 hours of exposure)
  • HTSUS Code: 8542.31.0001
  • Status: Active
