TB-03F Ai-Thinker

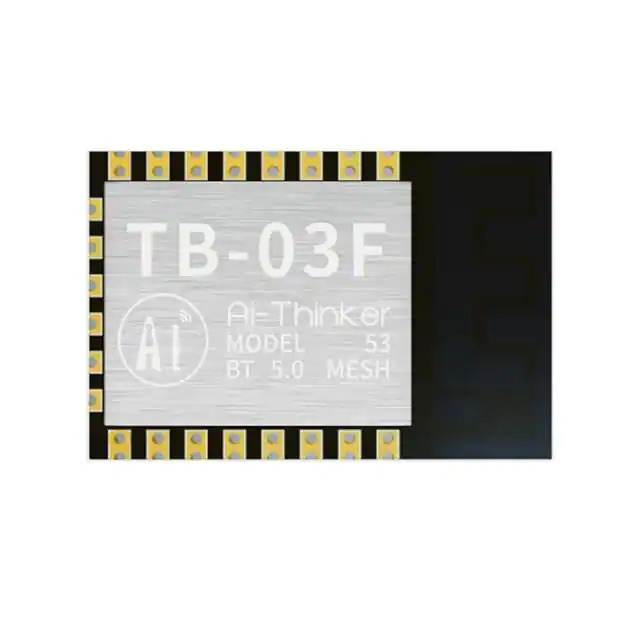

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth
Protocol Bluetooth v5.0
Modulation -
Frequency 2.4GHz
Data Rate -
Power - Output 10dBm
Sensitivity -93dBm
Serial Interfaces ADC, GPIO, I²S, PWM, SPI
Antenna Type PCB Trace
Utilized IC / Part -
Memory Size -
Voltage - Supply 2.7V ~ 3.6V
Current - Receiving -
Current - Transmitting 6.36mA ~ 20.54mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 22-SMD Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8517.62.0090
Win Source Part Number 1370875-TB-03F
Ultra Librarian 3D Model Ultra Librarian TB-03F CAD Model

Description

The Ai-Thinker 1370875-TB-03F is a 2.4GHz RF transceiver module designed for Bluetooth communication.

  • Operating Temperature: -40°C to 85°C
  • Voltage Supply Range: 2.7V to 3.6V
  • Antenna: PCB Trace Antenna
  • Bluetooth Protocol: v5.0
  • Power Output: 10dBm
  • Sensitivity: -93dBm
  • Serial Interfaces: ADC, GPIO, I²S, PWM, SPI
  • Product Status: Active
  • Mounting Type: Surface Mount
