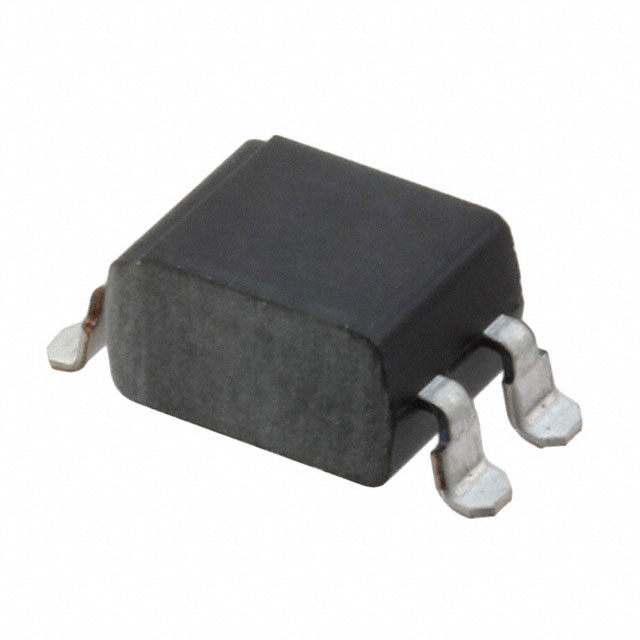

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 100V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Approvals BSI, DEMKO, SEMKO, UR, VDE
Win Source Part Number 113234-S21ME6IY
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S21ME6IY CAD Model

Description

The S21ME6IY is an electronic component manufactured by Sharp Microelectronics.

  • Win Source Part Number: 113234
  • Status: obsolete (EOL)
  • Package: 4-SMD
  • Supply and Demand Status: balanced
  • Isolation Voltage: 5000Vrms
  • Continuous Forward Current: max 50mA
  • Approvals: BSI, DEMKO, SEMKO, UR, and VDE
  • Temperature Range: -30°C to 100°C
