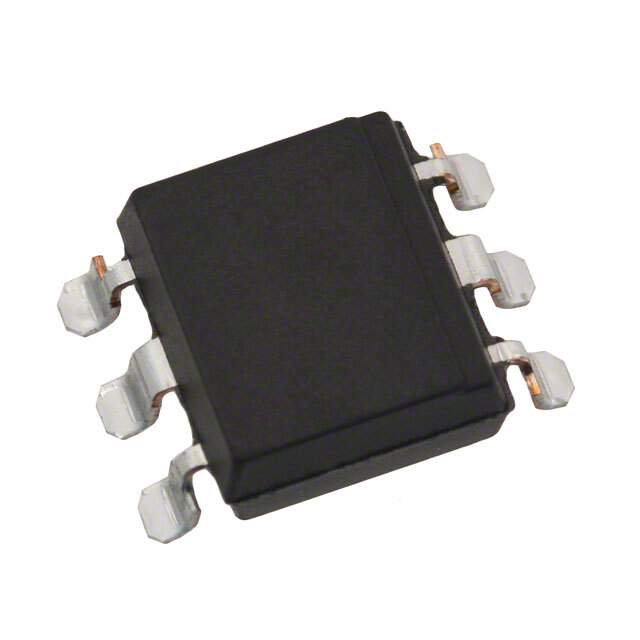

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5000Vrms
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Propagation Delay tpLH / tpHL (Max) 6μs, 3μs
Rise and Fall Time 100ns, 50ns
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Supply Voltage - Operating 3 V to 15 V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 1086708-PC900V0NIZX
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PC900V0NIZX CAD Model

Description

The PC900V0NIZX is an obsolete (EOL) electronic component that falls under the category of isolators, manufactured by Sharp Microelectronics.

  • Packaging: Tube/Rail
  • Supply and Demand Status: Sufficient
  • Output Type: Open Collector
  • Forward Voltage: 1.1V
  • Input Type: DC
  • Channel(s): 1
  • Inputs (Side 1/0): Yes
  • Common Mode Transient Immunity (min): Not specified
  • Propagation Delay tpLH / tpHL (max): 6μs and 3μs
  • Isolation Voltage: 5000Vrms
  • Case/Package: 6-SMD
  • Temperature Range: -25°C to 85°C
  • Supply Voltage - Operating: 3 V to 15 V
  • Rise and Fall Time: 100ns and 50ns
  • Channel Output Current: 50mA
  • Continuous Forward Current-Max: 50mA
