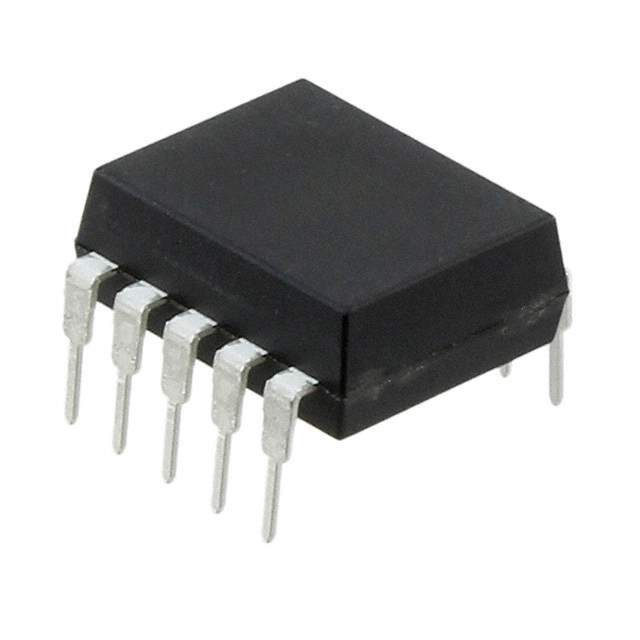

ACNV4506-000E Real Image
Same model may have multiple batches, images only for reference.

ACNV4506-000E

Part No ACNV4506-000E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 7.5KV OPEN COLL 10DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 7500Vrms
Common Mode Transient Immunity (Minimum) 30kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Output Current per Channel 15mA
Propagation Delay tpLH / tpHL (Maximum) 550ns, 400ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Maximum) 25mA
Operating Supply Voltage 4.5 V ~ 30 V
Operating Temperature Range -40°C ~ 105°C
Mounting Style Through Hole
Package 10-DIP (0.433", 11.01mm)
Manufacturer Package 10-DIP
Win Source Part Number 766922-ACNV4506-000E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 175
Family Name ACNV4506
Introduction Date November 08, 2010
ECCN EAR99
Country of Origin Singapore, Thailand
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ACNV4506-000E CAD Model

Description

The Broadcom Limited 766922-ACNV4506-000E is an isolator integrated circuit.

  • Popularity: Medium
  • Supply and Demand: Limited
  • Packaging: Tube
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 105°C
  • Package: 10-DIP (0.433", 11.01mm)
  • Output Type: Open Collector, Schottky Clamped
  • Operating Supply Voltage: 4.5 V to 30 V
  • Channels: 1
  • Voltage-Isolation: 7500Vrms
  • Family Name: ACNV4506
