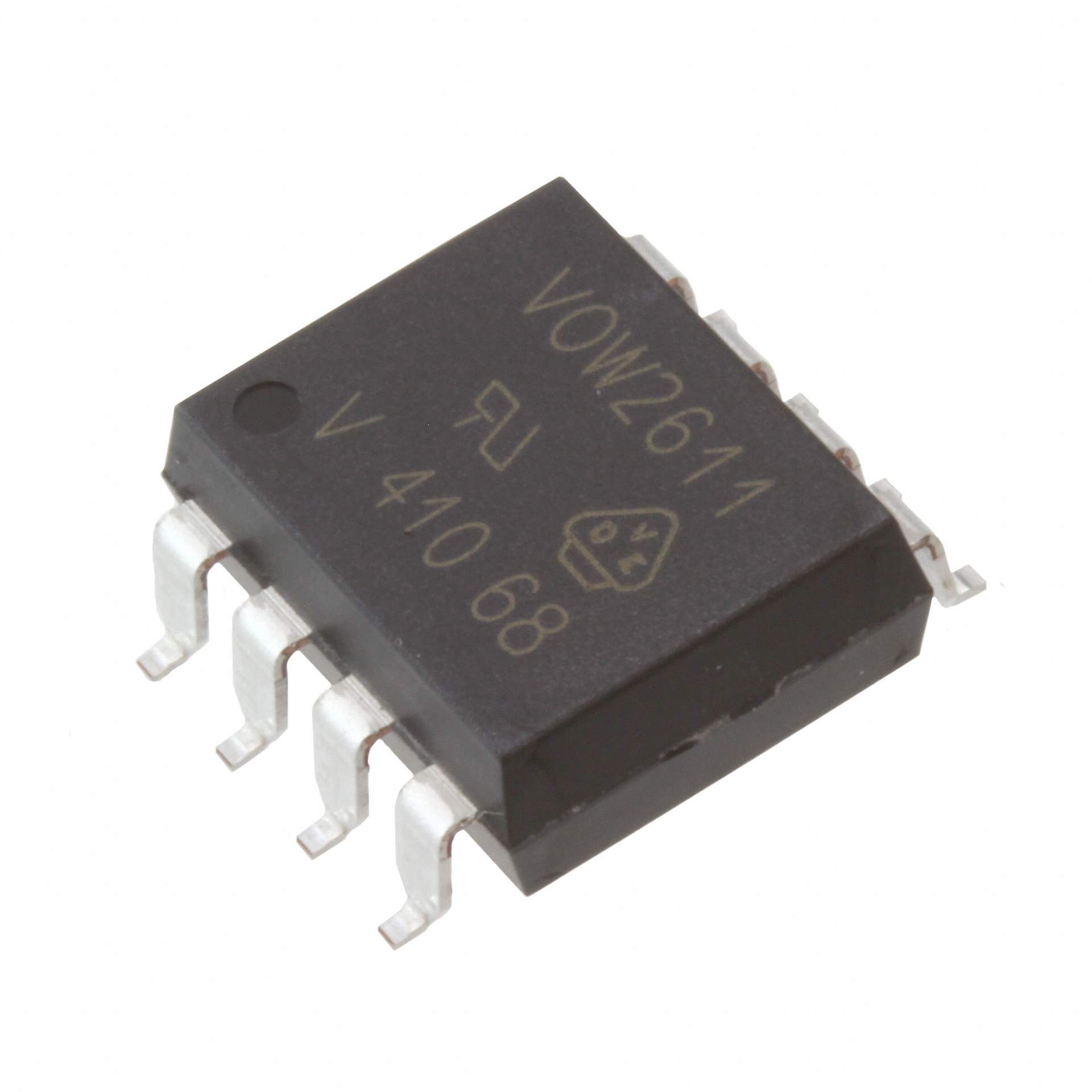

Same model may have multiple batches, images only for reference.

VOW2611-X017T

Name: VOW2611-X017T
Brand: Vishay
SKU: 1331926
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VOW2611-X017T
Manufacturer	Vishay
Catalog	Optoisolators - Logic Output
Description	OPTOISO 5.3KV OPN COLLECTOR 8SMD / Logic Output Optoisolator 10MBd Open Collector 5300Vrms 1 Channel 25kV/µs CMTI 8-SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Optoisolators - Logic Output
Manufacturer	Vishay Semiconductor Opto Division
Packaging	Reel - TR
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5300Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	50 mA
Data Rate	10MBd
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise / Fall Time (Typ)	14ns, 7ns
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	4.5V ~ 5.5V
Temperature Range - Operating	-40°C ~ 100°C
Mounting	Surface Mount
Case / Package	8-SMD, Gull Wing
Supplier Device Package	8-SMD
Base Product Number	VOW2611
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.49.8000
Other Part Number	VOW2611-X017TDKR,751-VOW2611-X017TTR,VOW2611-X017TTR-ND,751-VOW2611-X017TCT,VOW2611-X017TCT,VOW2611-X017TCT-ND,VOW2611-X017TTR,751-VOW2611-X017TDKR,VOW2611-X017TDKR-ND
Standard Package	750
Win Source Part Number	1331926-VOW2611-X017T
Ultra Librarian 3D Model	Ultra Librarian VOW2611-X017T CAD Model

Description

The Vishay Semiconductor Opto Division VOW2611-X017T is an optoisolator with a logic output.

Manufacturer: Vishay Semiconductor Opto Division
Output: Logic
Mounting: Surface Mount
Package: 8-SMD
Data Rate: 10MBd
Input Type: DC
Output Type: Open Collector
Current-Output/Channel: 50mA
Maximum Forward DC Current: 20mA
Forward Voltage: 1.4V
Voltage Isolation: 5300Vrms
Common Mode Transient Immunity: 25kV/μs
Propagation Delay tpLH / tpHL: 100ns, 100ns
Operating Temperature: -40°C to 100°C
Compliant: RoHS3
