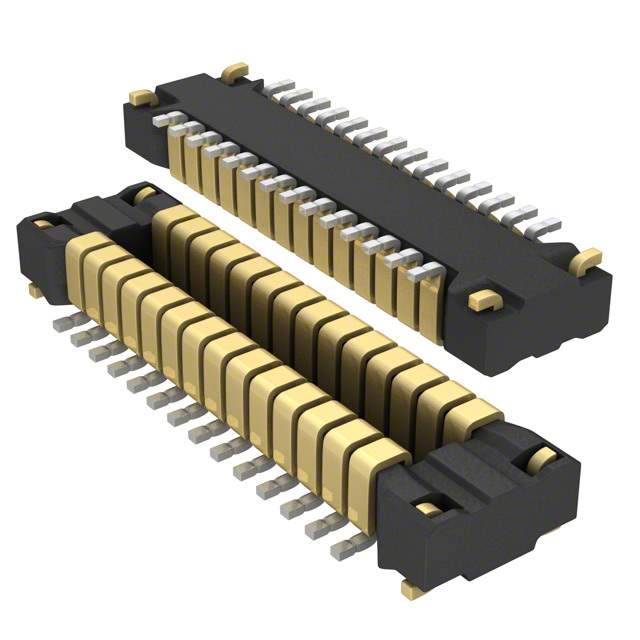

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 28
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.033" (0.84mm)
Win Source Part Number 1021135-AXT628124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT628124 CAD Model

Description

The AXT628124 is a header connector with 28 positions and center strip contacts manufactured by Panasonic Electric Works.

  • Positions: 28
  • Contacts: Center strip
  • Pitch: 0.016 inches (0.40mm)
  • Features: Solder retention
  • Connector Type: SMD (SMT)
  • Rows: Two
  • Contact Finish: Gold
  • Height Above Board: 0.033 inches (0.84mm)
  • Mated Stacking Heights: 1mm
  • Supply and Demand Status: Balanced
  • Quantity Per Package: 3,000 pcs
