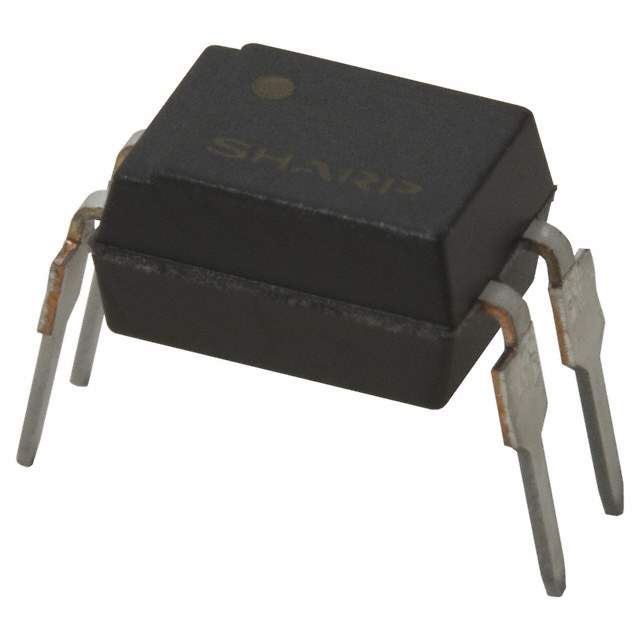

PC817X1NSZ9F Real Image
Same model may have multiple batches, images only for reference.

PC817X1NSZ9F

Part No PC817X1NSZ9F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description PHOTOCOUPLER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer SHARP/Socle Technology
Packaging Tube
Part Status Obsolete (End Of Life)
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 50% at 5mA
Current Transfer Ratio (Maximum) 600% at 5mA
Rise / Fall Time (Typ) 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package 4-DIP
Supplier Device Package 4-DIP
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805858-PC817X1NSZ9F
Ultra Librarian 3D Model Ultra Librarian PC817X1NSZ9F CAD Model

Description

This transistor output type optocoupler is manufactured by SHARP/Socle Technology.

  • Win Source Part Number: 805858-PC817X1NSZ9F
  • Packaging: Tube
  • Mounting Style: Through-hole
  • Input Type: DC
  • Voltage-Forward (Vf) (Typ): 1.2V
  • Rise/Fall Time (Typ): 4μs, 3μs
  • Current Output/Channel: 50mA
  • Channels: Single
  • Voltage Isolation: 5000Vrms
  • Minimum Current Transfer Ratio: 50% @ 5mA
  • Supplier Device Package: 4-DIP
  • Operating Temperature Range: -30°C ~ 100°C
  • Maximum Output Voltage: 80V
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: Not Applicable
