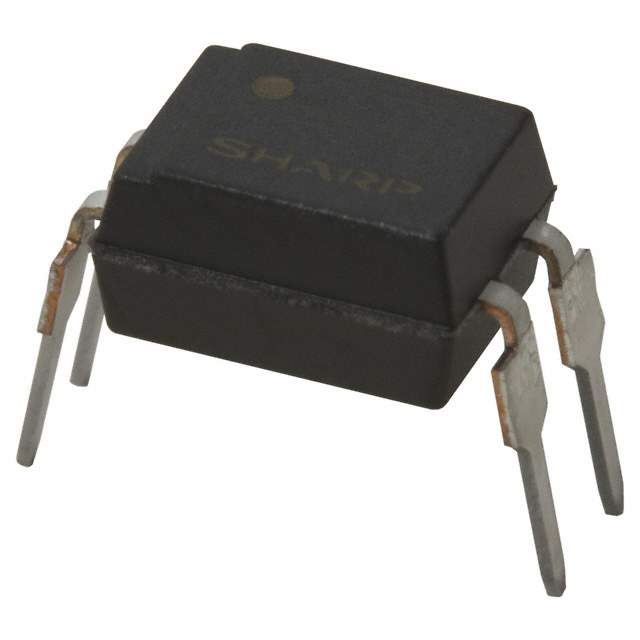

PC814X1CSZ9F

Part No PC814X1CSZ9F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description PHOTOCOUPLER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer SHARP/Socle Technology
Packaging Tube
Status Obsolete
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 20% at 1mA
Current Transfer Ratio (Maximum) 300% at 1mA
Rise / Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 35V
Current - Output / Channel 50mA
Voltage - Forward (Vf) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package 4-DIP
Supplier Device Package 4-DIP
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Win Source Part Number 733304-PC814X1CSZ9F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PC814X1CSZ9F CAD Model

Description

The SHARP/Socle Technology PC814X1CSZ9F is a through-hole transistor output optocoupler. It features a high isolation voltage of 5000Vrms and a maximum output voltage of 35V.

  • Isolation Voltage: 5000Vrms
  • Maximum Output Voltage: 35V
  • Current Transfer Ratio: 20% @ 1mA
  • Maximum Current Transfer Ratio: 300% @ 1mA
  • Applications: High voltage isolation, such as power supplies and motor control circuits
  • Package: 4-DIP
  • Market Popularity: High popularity
