Same model may have multiple batches, images only for reference.

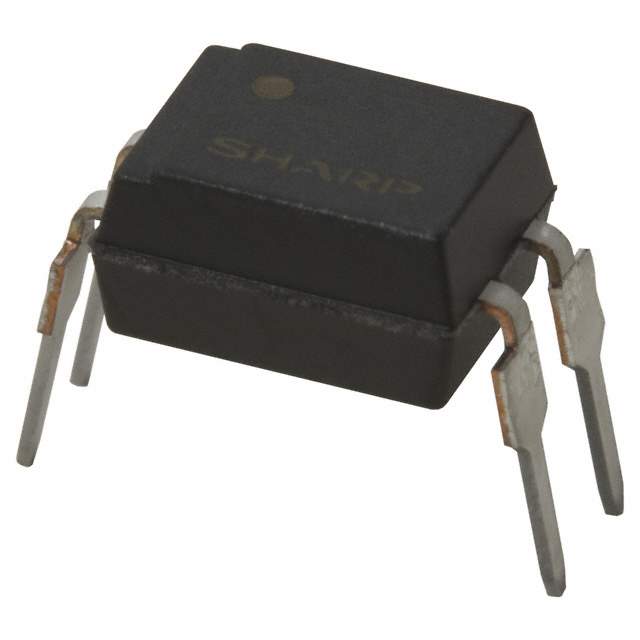

PC817X4NSZ9F Real Image
Same model may have multiple batches, images only for reference.

PC817X4NSZ9F

Part No PC817X4NSZ9F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description PHOTOCOUPLER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer SHARP/Socle Technology
Packaging Tube
Part Status Obsolete (End Of Life)
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 50% at 5mA
Current Transfer Ratio (Maximum) 600% at 5mA
Rise / Fall Time (Typ) 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Style Through Hole
Manufacturer Package 4-DIP
Supplier Device Package 4-DIP
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800684-PC817X4NSZ9F
Ultra Librarian 3D Model Ultra Librarian PC817X4NSZ9F CAD Model

Description

The PC817X4NSZ9F is a transistor output type optocoupler from SHARP/Socle Technology.

  • Voltage Forward (Vf): 1.2V
  • Maximum Output Voltage: 80V
  • Rise/Fall Time: 4μs, 3μs
  • Current Output/Channel: 50mA
  • Channels: 1
  • Voltage Isolation: 5000Vrms
  • Mounting Type: Through Hole
  • Package Type: 4-DIP
  • Current Transfer Ratio: 50% @ 5mA, 600% (Maximum) @ 5mA
  • Vce Saturation (Maximum): 200mV
