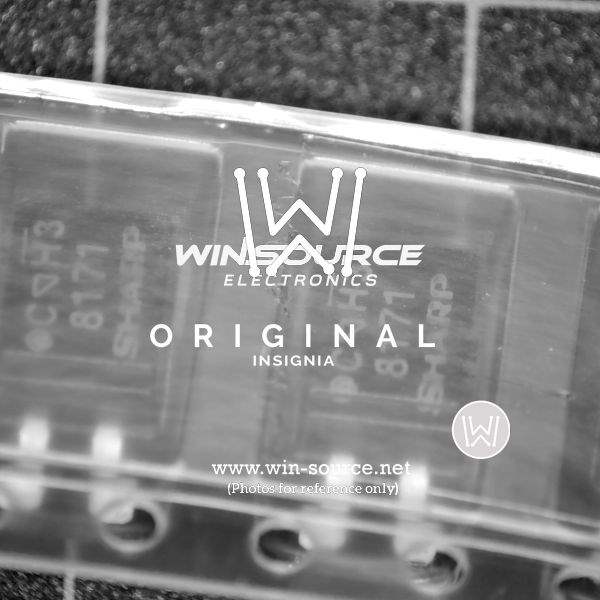

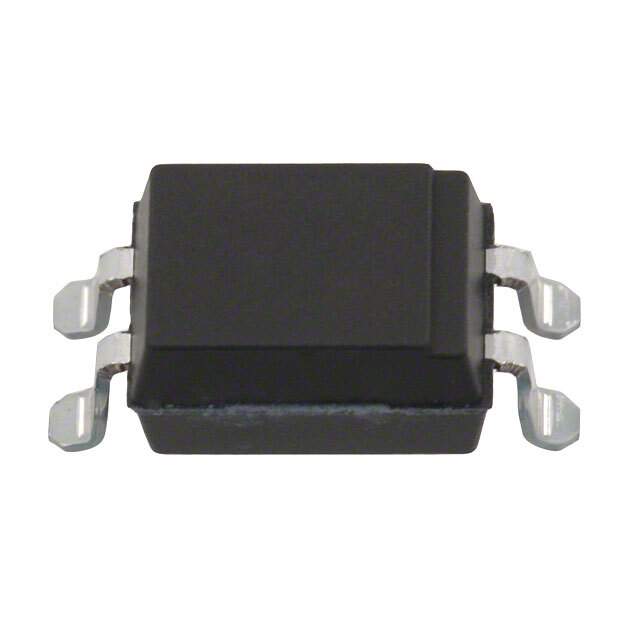

PC81710NIP0X Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 100% @ 500μA
Maximum DC Current Transfer Ratio 600% @ 500μA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 10mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 1086689-PC81710NIP0X
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC81710NIP0X CAD Model

Description

The PC817-10NIP0X is a high-performance optocoupler manufactured by Sharp Microelectronics.

  • Maximum Isolation Voltage: 5000Vrms
  • Switching Turn-On Time: 4μs
  • Switching Turn-Off Time: 3μs
  • Minimum DC Current Transfer Ratio: 100% @ 500μA
  • Maximum DC Current Transfer Ratio: 600% @ 500μA
  • Maximum Output Voltage: 80V
  • Channel Output Current: 50mA
  • Package: 4-SMD
  • Operating Temperature: -30°C to 100°C
