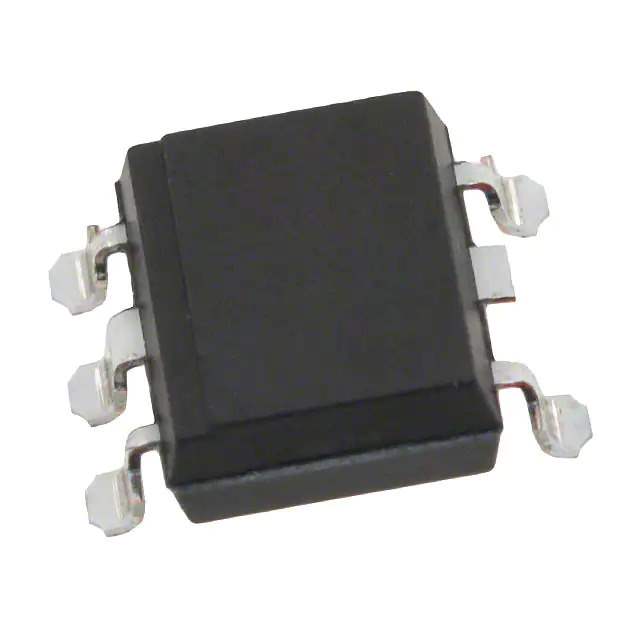

PC3SD11NXZBF Real Image
Same model may have multiple batches, images only for reference.

PC3SD11NXZBF

Part No PC3SD11NXZBF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6SMD / Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Sharp Microelectronics
Package Tube
Product Status Discontinued
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 1kV/µs
Current - LED Trigger (Ift) (Max) 7mA
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 3.5mA
Turn On Time 100µs (Max)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Surface Mount
Package / Case 6-SMD
Supplier Device Package 6-SMD
Approval Agency CSA, UR
Base Product Number PC3SD11
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 888645-PC3SD11NXZBF
Ultra Librarian 3D Model Ultra Librarian PC3SD11NXZBF CAD Model

Description

The PC3SD11NXZBF is a triac output optoisolator from Sharp Microelectronics.

  • Series: PC3SD11
  • Package: 6-SMD
  • Voltage Isolation: 5000Vrms
  • Maximum Forward Current: 50mA
  • Forward Voltage: 1.2V
  • Application: Isolating high voltage AC loads
  • Zero-Crossing Circuit: No
  • Turn-On Time: 100μs
  • Operating Temperature Range: -30°C to 100°C
  • Product Status: Discontinued
  • Packaging: Tube
  • Standard Package: 50 pcs
