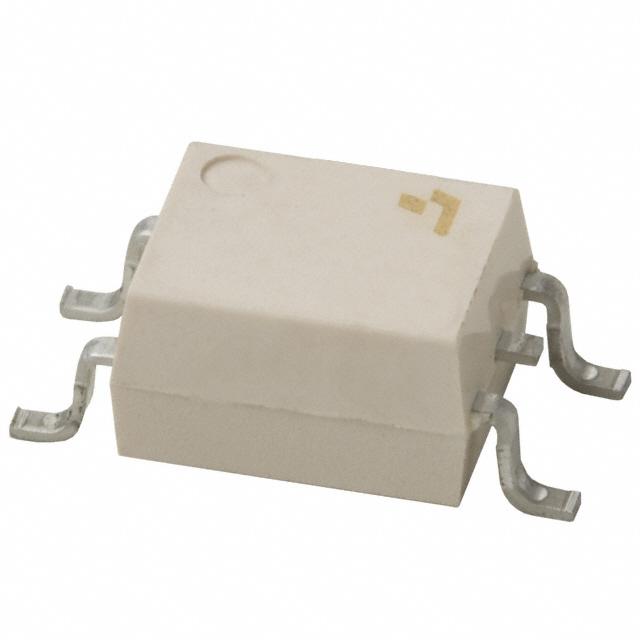

TLP160J(TPL,U,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP160J(TPL,U,F)

Part No TLP160J(TPL,U,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description Optoisolator Triac Output 2500Vrms 1 Channel 6-MFSOP, 4 Lead
Datasheet
TLP160J(TPL,U,F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators
Family Optoisolators - Triac, SCR Output
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel(TR)
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 2500Vrms
Voltage - Off State 600V
Static dV/dt (Min) 500V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 70mA
Current - Hold (Ih) 1mA (Typ)
Turn On Time 30μs
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50mA
Operating Temperature Range -40°C ~ 100°C
Mounting Style SMD/SMT
Package 6-SOIC (0.173", 4.40mm Width) 4 Leads
Manufacturer Device Package 6-MFSOP, 4 Lead
Approvals UR
Win Source Part Number 218016-TLP160J(TPL,U,F)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLP160J(TPL,U,F) CAD Model

Description

The TLP160J(TPL,U,F) is an optoisolator IC from Toshiba Semiconductor and Storage. It is a part of the Optoisolators - Triac, SCR Output family and is categorized under Isolators. It has a 2500Vrms voltage isolation and a 600V voltage off state. The package is 6-SOIC (0.173", 4.40mm Width) 4 Leads.
