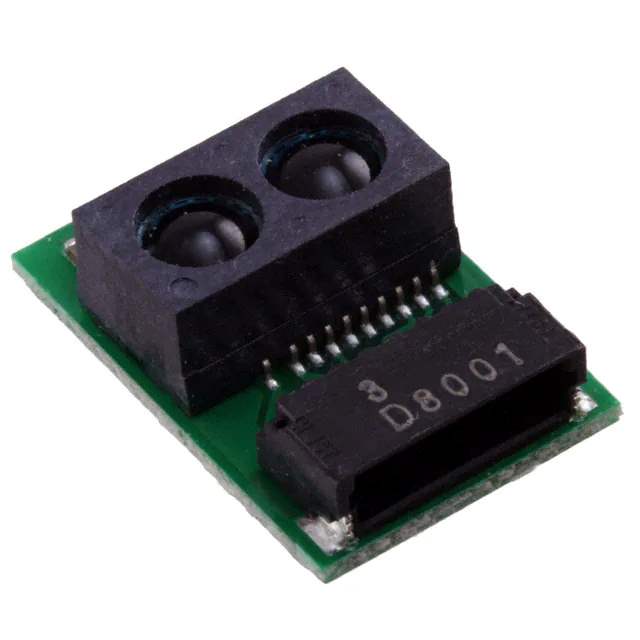

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Distance Measuring
Mfr Sharp Microelectronics
Package Tray
Product Status Active
Sensing Distance 4 ~ 50cm
Output Type I²C, Analog
Voltage - Supply 2.7V ~ 5.5V
Current - Supply 36 mA
Voltage - Output Difference (Typ) @ Distance 1.65V @ 4 ~ 50cm
Voltage - Output (Typ) @ Distance 550mV @ 50cm
Temperature Range - Operating -10°C ~ 60°C (TA)
Base Product Number GP2Y0
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9031.80.8085
Win Source Part Number 847830-GP2Y0E03
Ultra Librarian 3D Model Ultra Librarian GP2Y0E03 CAD Model

Description

The 847830-GP2Y0E03 is an active distance measuring optical sensor. Sharp Microelectronics manufactures it.

  • Package: Tray (100 pieces)
  • Output Type: I²C and analog
  • Current Supply: 36mA
  • Sensing Distance: 4cm to 50cm
  • Voltage Output Difference: 1.65V @ 4cm to 50cm
  • Typical Output Voltage: 550mV @ 50cm
  • Voltage Supply: 2.7V to 5.5V
  • Temperature Range: -10°C to 60°C
  • ECCN: EAR99
  • MSL: 1
  • Application: Distance measurement
