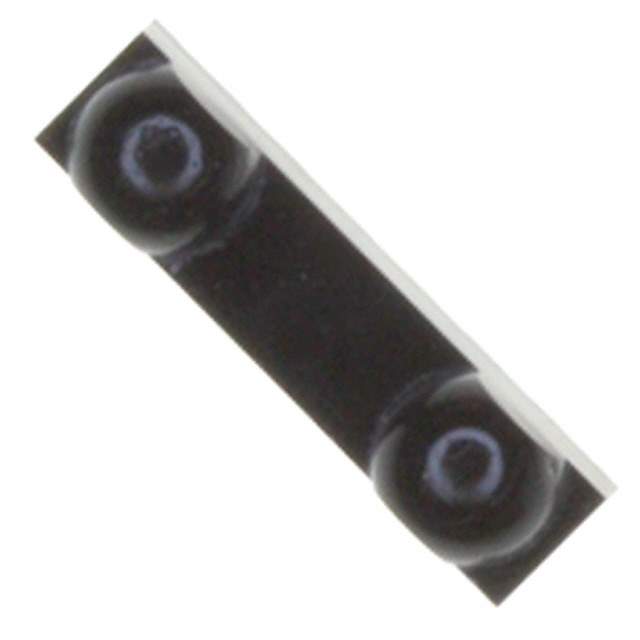

TFBS4652-TR3 Real Image
Same model may have multiple batches, images only for reference.

TFBS4652-TR3

Part No TFBS4652-TR3
Manufacturer Vishay
Catalog IrDA Transceiver Modules
Description Infrared Transceiver 9.6 kbit/s to 115.2 kbit/s (SIR) | TXRX IRDA 115.2KBIT SIDE 7-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Tape and Reel
Data Rate 115.2kbs (SIR)
Supply Voltage (V) 2.4V ~ 3.6V
Idle Current, Typ at 25°C 75μA
Link Range, Low Power 50cm
Orientation Side View
Temperature Range - Operating -25°C ~ 85°C
Size 6.8mm x 2.8mm x 1.6mm
Standards IrPHY 1.4
Manufacturer Pack Quantity 2,500
MSL Level 4 (72 Hours)
Win Source Part Number 1266833-TFBS4652-TR3
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TFBS4652-TR3 CAD Model

Description

The Vishay TFBS4652-TR3 is a sensor/transducer that is used in low power link range applications.

  • Manufacturer: Vishay
  • Application: Low Power Link Range
  • Data Rate: 115.2kbs (SIR)
  • Link Range: 50cm
  • Size: 6.8mm x 2.8mm x 1.6mm
  • Supply Voltage Range: 2.4V ~ 3.6V
  • Idle Current: 75μA @ 25°C
  • Orientation: Side View
  • Packaging: Tape and Reel
  • Manufacturer Pack Quantity: 2,500
  • MSL Level: 4 (72 hours)
