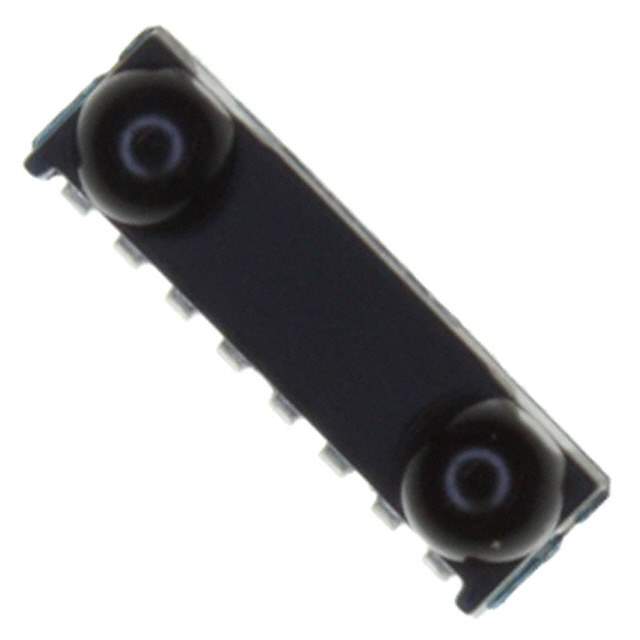

TFDU6300-TT3 Real Image
Same model may have multiple batches, images only for reference.

TFDU6300-TT3

Part No TFDU6300-TT3
Manufacturer Vishay
Catalog IrDA Transceiver Modules
Description Fast Infrared Transceiver Module (FIR, 4 Mbit/s) for 2.4 V to 3.6 V Operation | TXRX IRDA 4MBIT 2.5MM TOP 8-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel
Status Obsolete
Data Rate 4Mbs (FIR)
Supply Voltage (V) 2.4V ~ 3.6V
Idle Current, Typ at 25°C 1.8mA
Link Range, Low Power 70cm
Orientation Top View
Temperature Range - Operating -25°C ~ 85°C
Size 8.5mm x 3.1mm x 2.5mm
Standards IrPHY 1.4
Manufacturer Pack Quantity 1
MSL Level 4 (72 Hours)
Win Source Part Number 1266852-TFDU6300-TT3
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TFDU6300-TT3 CAD Model

Description

The TFDU6300-TT3 from Vishay Semiconductor Opto Division is an infrared transceiver module.

  • Applications: remote control, data transmission, and sensing
  • Supply and Demand: balanced
  • Features: high data rate, low power consumption
