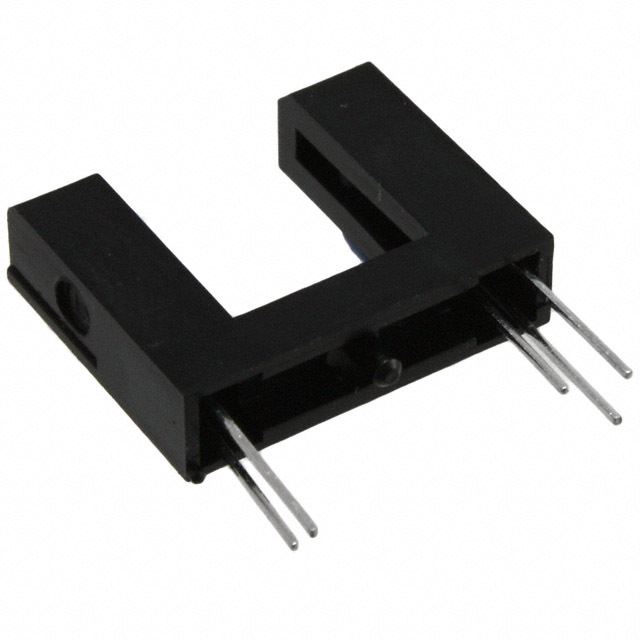

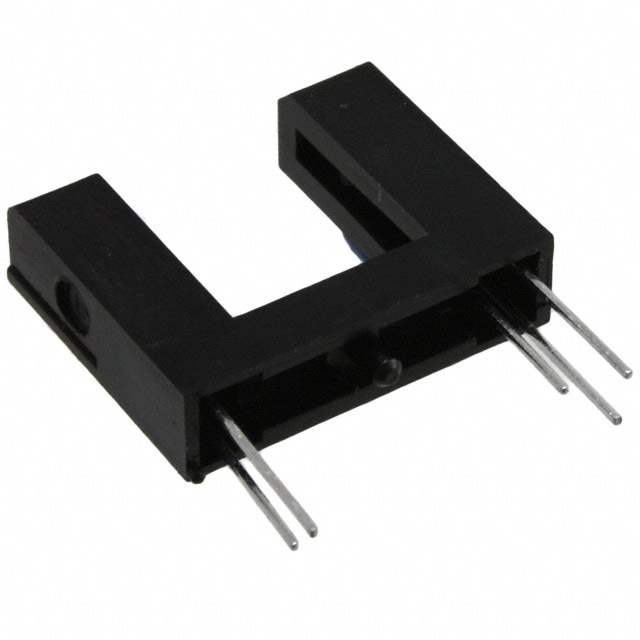

GP1A57HRJ00F

Part No GP1A57HRJ00F
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Photointerrupters - Slot Type - Logic Output
Description Photointerrupter Transmissive 10mm Photologic, Pull up 5-Pin / PHOTOINTER OPIC SLOT 10MM PCB
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Sensing Distance 0.394" (10mm)
Sensing Method Transmissive
Mounting Through Hole
Operating Supply Current 1.7mA
Supply Voltage - Operating 4.5 V to 17 V
Response Time 1μs, 0.05μs
Dimension PCB Mount
Win Source Part Number 088858-GP1A57HRJ00F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name GP1A57HR
Introduction Date February 24, 1997
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian GP1A57HRJ00F CAD Model

Description

GP1A57HRJ00F from Sharp Microelectronics is an optical sensor in the photointerrupter, slot-type, logic-output category, designed for position detection, motion sensing, and object presence monitoring in compact electronic systems. Components in this class are commonly used in printers, office automation equipment, industrial controls, consumer devices, and mechatronic assemblies where reliable non-contact switching is required. Engineers often select slot-type photointerrupters for clean signal generation, mechanical simplicity, and dependable detection in encoder, flag, and shutter-based designs. For procurement and design planning, this part should be treated with caution because the published lifecycle status is information not available. Teams supporting existing products or evaluating it for new designs should confirm current production availability directly with Sharp Microelectronics or authorized distribution channels. RoHS compliance information is also not available from the provided data, so environmental compliance should be verified against the latest datasheet, declaration, or manufacturer documentation before release to production.
