Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Status Obsolete(EOL)
Sensing Distance 0.197" (5mm)
Sensing Method Transmissive
Mounting Through Hole
Operating Supply Current 1.7mA
Supply Voltage - Operating 4.5 V to 17 V
Response Time 1μs, 0.05μs
Dimension PCB Mount
Win Source Part Number 37580-GP1A53HRJ00F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name GP1A53HR
Introduction Date March 30, 2006
ECCN EAR99
Country of Origin Indonesia, Japan, Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian GP1A53HRJ00F CAD Model

Description

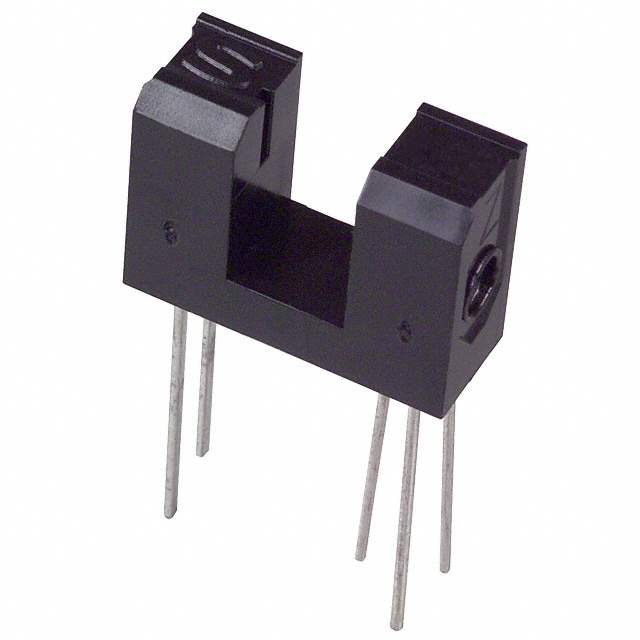

The Sharp Microelectronics GP1A53HR photointerrupter sensor is a transmissive sensor that is used in various electronic applications. It has a response time of 1μs and 0.05μs, and it is mounted through a hole. The sensing distance is 0.197" (5mm), and it is part of the GP1A53HR family. The supply voltage for operation is 4.5V to 17V, and it has an operating supply current of 1.7mA. It is an obsolete (EOL) product, and its estimated EOL date is not available. The popularity of this product is high, and its supply and demand status is sufficient.
