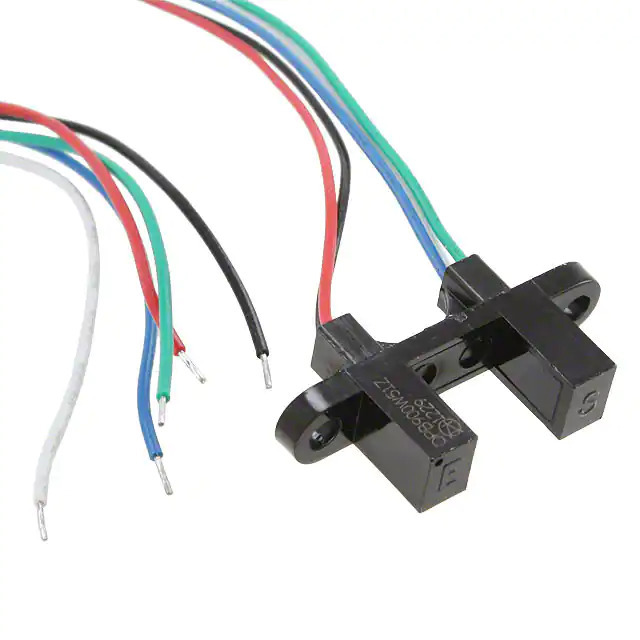

OPB901W55Z TT Electronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Logic Output
Mfr TT Electronics/Optek Technology
Series Photologic®
Package Bulk
Product Status Active
Sensing Distance 0.375" (9.53mm)
Sensing Method Through-Beam
Output Configuration NPN - Open Collector, Buffer
Mounting Type Chassis Mount
Current - Supply 15 mA
Voltage - Supply 4.75V ~ 5.25V
Response Time 70ns
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case Module, Pre-Wired
Base Product Number OPB901
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1357079-OPB901W55Z
Ultra Librarian 3D Model Ultra Librarian OPB901W55Z CAD Model

Description

The OPB901W55Z is a slot type photointerrupter with a logic output.

  • Series: Photologic®
  • Operating Temperature: -40°C ~ 85°C
  • Voltage - Supply: 4.75V ~ 5.25V
  • Current - Supply: 15mA
  • Response Time: 70ns
  • Sensing Distance: 0.375" (9.53mm)
  • Sensing Method: Through-Beam
  • Package / Case: Module, Pre-Wired
  • Mounting Type: Chassis Mount
